Panduit UGB2/0-414-18 Universal Grd Bar

Product Description

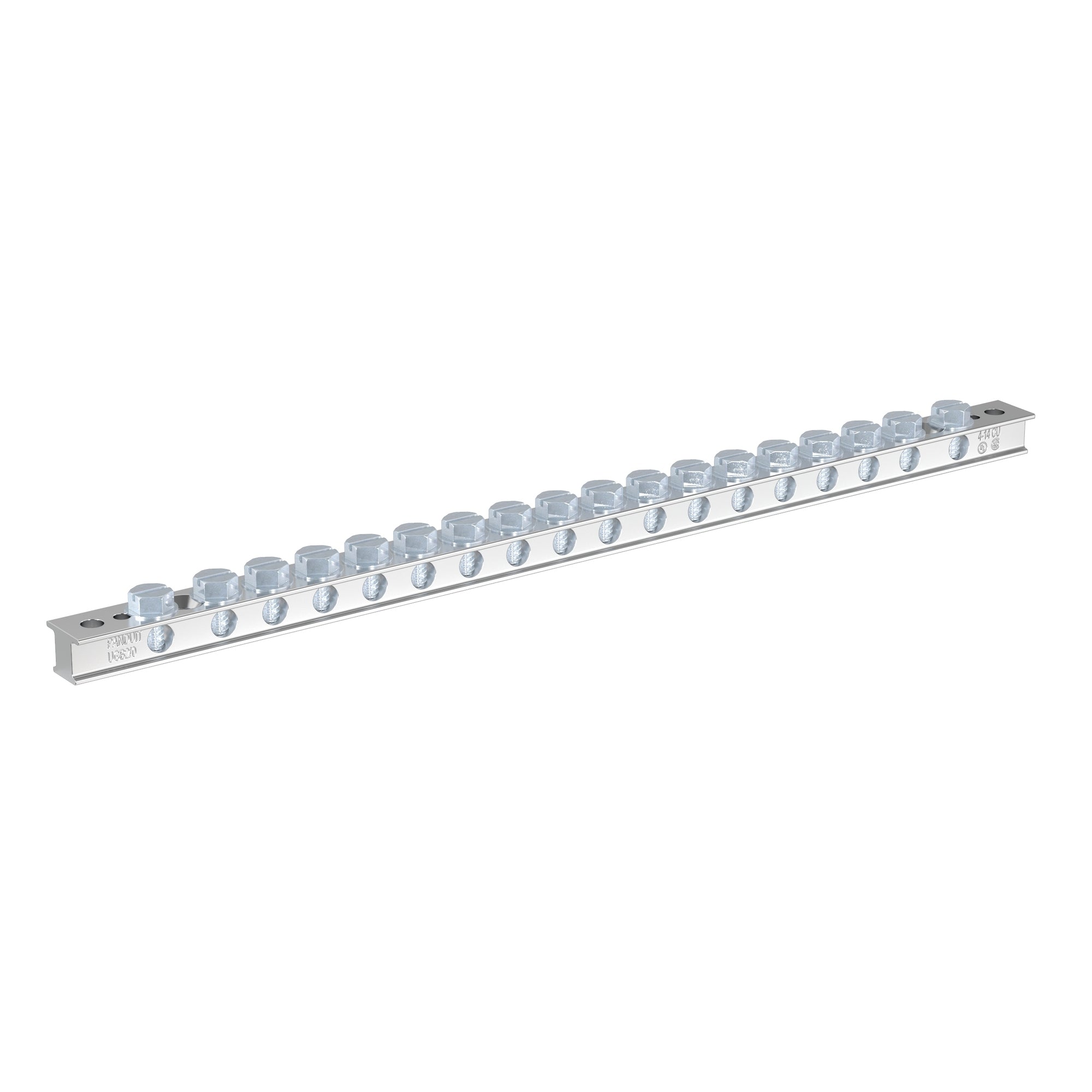

The Panduit UGB2/0-414-18 Universal Ground Bar is designed for secure termination of the main equipment grounding conductor in control panels or enclosures. It can accept wire sizes ranging from No. 14 to No. 4 AWG in eighteen ports, and it can connect a main equipment grounding conductor up to 2/0 AWG using compression or mechanical connectors. This product offers multiple mounting options such as bonding stand-offs and direct panel mounting.

• Universal ground bar for various wire sizes.
• Supports mounting with bonding and isolation stand-offs.
• Durable copper construction.

Product Highlights

Universal grounding busbar for effective electrical grounding solutions.

Product Information

Standard Information

• Manufacturer: Panduit
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: UGB2/0-414-18
• Item Type: Grounding Busbar
• Length: 11.64 inches
• Bar Width: 0.62 inches
• Bar Height: 0.48 inches
• Material: Copper
• Standards: UL 467 and CSA certified 22.2 no.41
• UPC: 074983402243
