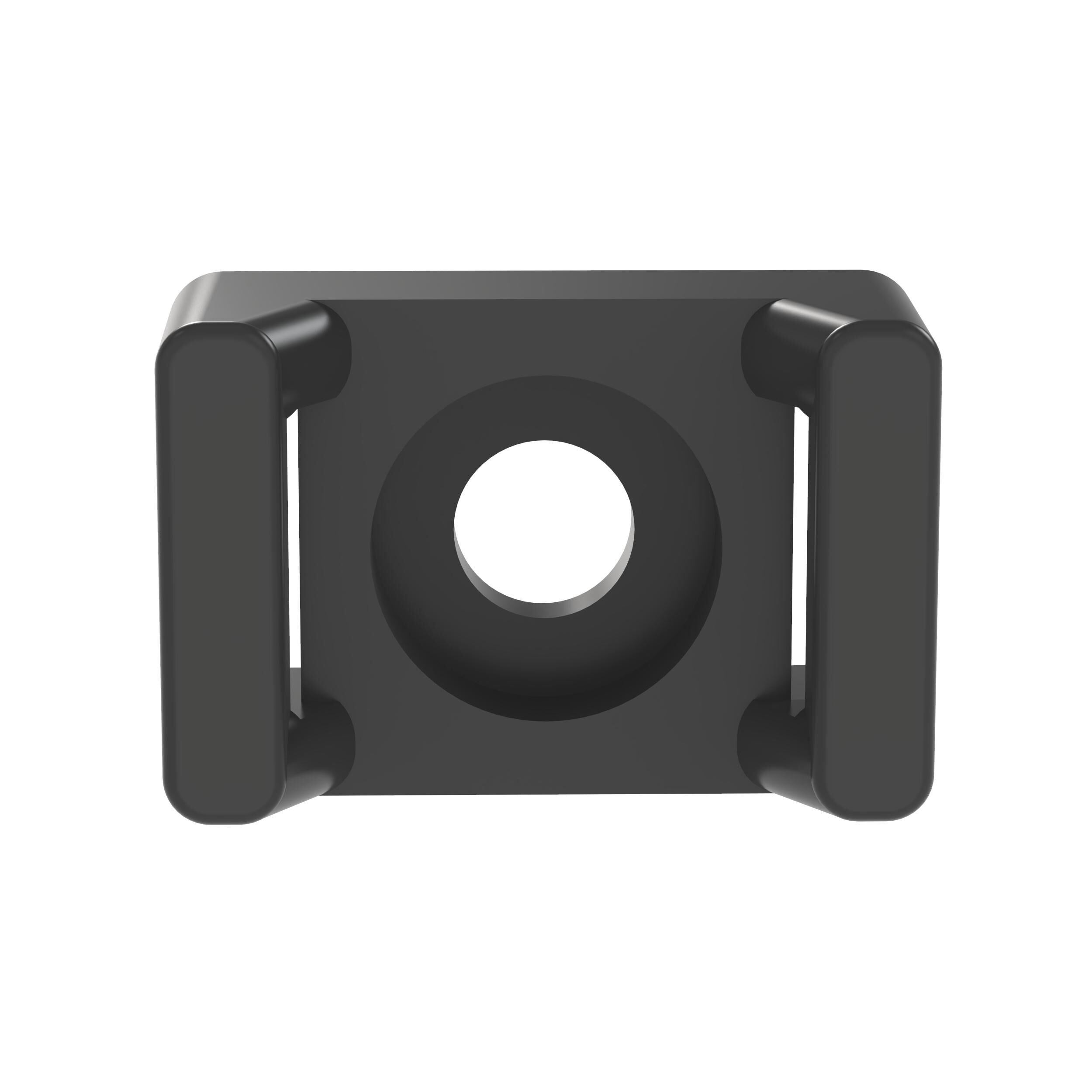

Panduit TM2S8-C0 Cable Tie Mount #8 Screw

Product Description

The PANDUIT TM2S8-C0 cable tie mount features a unique cradle design that provides maximum stability for the cable bundle. Its low profile design keeps the bundle close to the mounting surface where overhead space is limited. It is suitable for miniature, intermediate and standard cross-section cable ties and made of weather resistant nylon 6.6.

• Unique cradle design provides maximum stability for the cable bundle
• Low profile design keeps bundle close to mounting surface where overhead space is limited
• Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured

Product Highlights

The PANDUIT TM2S8-C0 cable tie mount offers maximum stability for cable bundles and is suitable for both indoor and outdoor use.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: TM2S8-C0

Technical Specifications

• Type: CABLES TIES AND ACCESSORIES
• UNSPSC Code: 39121703
• Category: Cables, Wires - Management
• Cable Ties - Holders and Mountings: Cable Ties - Holders and Mountings
• Size / Dimension: 0.63" L x 0.42" W x 0.27" H (16.0mm x 10.8mm x 7.0mm)
• Manufacturer: Panduit Corp
• For Use With/Related Products: M, I, S Ties
• Packaging: Bulk
• Material: Nylon 6/6
• Part Status: Active
• Mounting Type: Screw, #8 (M4)
• Base Product Number: TM2S8
• Brand Name: Panduit
• Sub Brand: Cable Tie Mount
• Item Name: Cable Tie Mount
• Length: 0.63 in
• Temperature Rating: -76 to 185 00b0F
• Mounting: #8 Screw, Rivet
• Application: For Indoor/Outdoor
• Manufacturer Part Number: TM2S8-C0
• Maximum Operating Temperature: 85 00b0C
• Minimum Operating Temperature: -60 00b0C
• Product Type: Cable Tie Mounts
• Series: TM Series
• Maximum Tie Width: 0.19 in
• Base Length: 0.63 in
• Base Width: 0.43 in
• Manufacturer Name: Panduit
