Panduit SCS350-X Pan 350mcm Cu Splice

Product Description

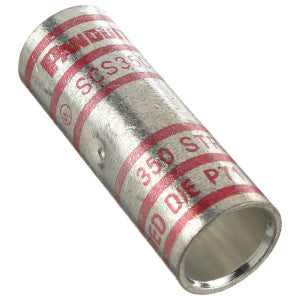

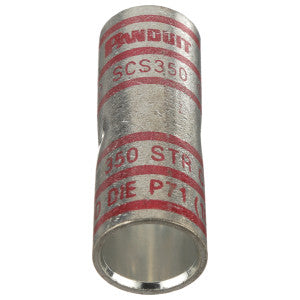

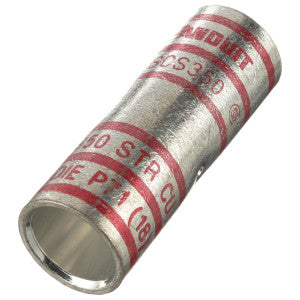

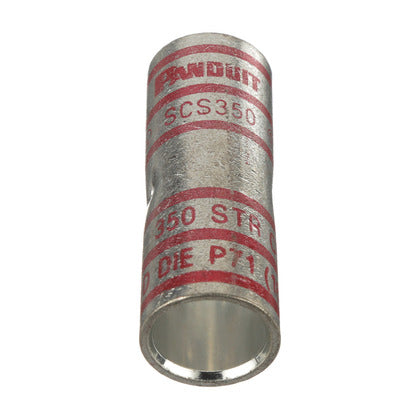

The Panduit SCS350-X Pan-Lug™ compression butt splice is designed for stranded copper conductors, supporting a 350 kcmil conductor size. It features a standard barrel and is electro tin-coated. This butt splice is suitable for applications requiring a reliable connection. It is 2.37 inches in length and has a voltage rating of 35 kV.

• Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
• Internal solid center prevents over-insertion of conductor
• Tin-plated to inhibit corrosion

Product Highlights

Copper butt splice with standard barrel for 350 kcmil cable, ensuring secure and corrosion-resistant connections.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: SCS350-X
• Country of Origin: MX - Mexico

Technical Specifications

• Barrel Size: 0.7 in ID x 0.87 in OD
• Color: Red
• Conductor Size: 350 kcmil
• Conductor Type: Stranded Copper
• Finish: Electro TiN Coated
• Length: 2.37 in
• Manufacturer Part Number: SCS350-X
• Material: Copper
• Series: SCS
• Specifications: 1-1/8 in L Wire Strip
• Standards/Approvals: ABS Approved|ARRA Compliant|Buy American Act Compliant|CSA Certified|NEBS Level 3|RoHS Compliant|UL Listed
• Temperature Rating: 90 deg C
• Voltage Rating: 35 kV
• Insulation Material: Non-Insulated
• Lug Wire Size: 350 kcmil
• Color Family: Red
• Manufacturer: PANDUIT
• Product Range: Pan-Lug SCS Series
• Wire Size AWG Max: 000000AWG
• RoHS Compliant: Yes
• RoHS Phthalates Compliant: Yes
• Category: Connectors, Interconnects
• Terminals: Wire Splice Connectors
• Termination: Crimp
• Wire Gauge: 350MCM (kcmil)
• Packaging: Bulk
• Insulation: Non-Insulated
• Part Status: Active
• Terminal Type: Butt Splice, Inline, Individual Openings
• Number of Wire Entries: 2
• Allowable Gauge Range: 350
