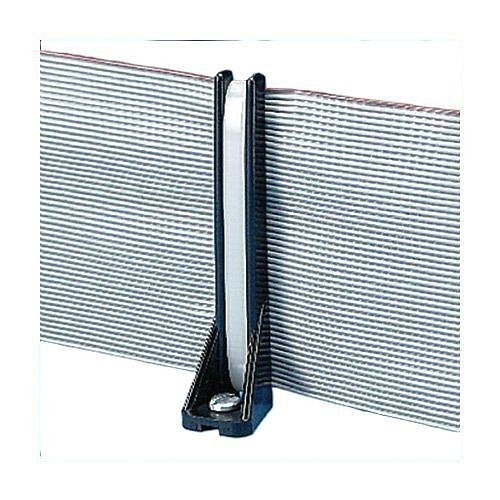

Panduit RAFCBI3-S6-C20 Right Angle Flat Cable Base 100pk

Product Description

The PANDUIT RAFCBI3-S6-C20 is a right angle flat cable base designed for use in raceway and conduit cable management systems. This fitting provides a 90-degree directional change for flat cable runs, allowing installers to route cables cleanly around corners without bending or stressing the cable. Supplied in a 100-piece pack, this component is suited for high-volume installations where consistent, professional cable routing is required. Electrical contractors and low-voltage technicians typically install this fitting as part of a structured raceway system.

This right angle flat cable base is used in commercial and residential electrical installations where surface-mounted raceway systems manage power or data cables. It is intended for use at directional transitions in flat cable raceway runs, keeping cable protected and organized along wall or ceiling surfaces. The 100-piece pack quantity makes it appropriate for new construction projects, tenant improvement work, or large retrofits requiring multiple transition points throughout a facility.

Key Features

• Right angle geometry directs flat cable runs through 90-degree horizontal transitions
• Designed for integration into surface-mounted raceway and conduit systems
• 100-piece pack quantity supports large-scale installation projects
• OEM-style fitting provides consistent fit and finish within compatible raceway systems

Compatibility

Designed as an OEM-style fitting for use within flat cable raceway and conduit systems of the appropriate series and size.

Installation Notes

Installation is typically performed by a licensed electrician or low-voltage technician. De-energize all circuits in the raceway before beginning work and follow applicable NEC guidelines for cable management. Ensure the base is fully seated and secured to the mounting surface before routing cable through the fitting. Do not force cable through the transition or exceed the cable fill capacity of the raceway system.
