Panduit RAFC5IW-X Bend Radius Fitting LD5 Ldph5 LDS5

Product Description

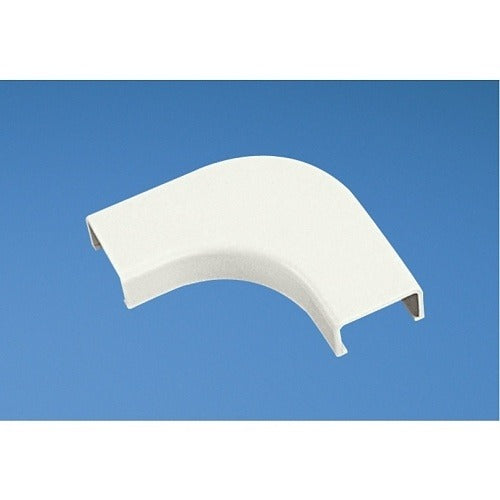

The PANDUIT RAFC5IW-X is a bend radius fitting designed for use with LD5, LDPh5, and LDS5 series surface raceway systems. It maintains proper cable bend radius at transition points, protecting conductors from damage caused by sharp directional changes inside the raceway channel. This fitting is sold as an individual unit and is installed by electricians and low-voltage technicians during raceway runs in commercial and residential wiring applications. It is part of Panduit's LD-series raceway accessory line, which supports organized, code-compliant cable management installations.

This fitting is used where an LD5, LDPh5, or LDS5 raceway changes direction and cable protection requirements mandate a controlled bend. Typical install scenarios include office environments, data centers, and commercial buildings where surface-mounted raceway systems route power or low-voltage cabling along walls and ceilings. It is sold as a single piece, making it practical for both new installations and repair or extension of existing raceway runs.

Key Features

• Maintains minimum cable bend radius at directional transitions in LD-series raceway
• Compatible with LD5, LDPh5, and LDS5 surface raceway channels
• Sold as a single unit for precise quantity ordering
• Designed for raceway and conduit applications per standard electrical installation practice

Compatibility

Compatible with Panduit LD5, LDPh5, and LDS5 series surface raceway systems as stated by the manufacturer.

Installation Notes

Installation is performed by a licensed electrician or qualified low-voltage technician. De-energize all circuits before opening raceway channels or handling conductors. Verify that the fitting aligns properly with the raceway channel before securing to avoid stress on cable jackets. Follow applicable NEC requirements for cable bend radius and raceway fill when routing conductors through this fitting.
