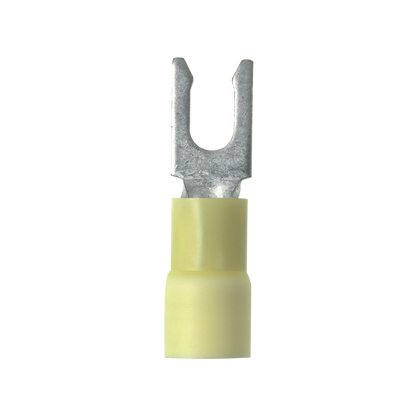

Panduit PV10-8LFX-L Locking Fork Terminal, Expanded Vinyl Insulation

Product Description

The Panduit PV10-8LFX-L is a locking fork terminal connector designed for secure and efficient electrical connections. This terminal features tin plating that enhances durability and resistance to corrosion. It is ideal for various industrial and commercial applications, offering ease of installation and dependable conductivity.

• Features terminal connector
• Connector with Tin plating
• Flame Retardant

Product Highlights

Panduit PV10-8LFX-L ensures secure electrical connections with its durable tin plating and flame-retardant properties.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV10-8LFX-L
• Country of Origin: Mexico

Technical Specifications

• ADI Part Number: P9-PV108LFXL
• Brand Name: Panduit
• Manufacturer: PANDUIT CORP
• Manufacturer Part Number: PV10-8LFX-L
• Packaged Quantity: 50
• Product Name: Terminal Connector
• Product Type: Terminal Connector
• American Wire Gauge: 10AWG
• Connector Plating: Tin
• Material: Copper
• Connector Type: Fork Terminal
• Width: 7.6 mm
• Length: 1.1"
• Limited Warranty: 1-Year
• Environmentally Friendly: Yes
• Features: Flame Retardant
• Maximum Operating Temperature: 105 °C, 221 °F
• Overall Length: 1.12 in
• Stud Size: #8
• Stud Hole Size: 4/25 in, 4.1 mm
• Insulation Material: Vinyl
• Maximum Wire Size: 10 AWG
• Minimum Wire Size: 12 AWG
• Barrel Type: Brazed Seam/Funnel Entry
• Finish: Tin Plated
• Product: Crimp Spade Terminals
• Fork Type: Locking Fork
• Environmental Initiative: ROHS
• Compliant: Yes
• Conductor Type: Copper Stranded
• Series: PV-LFX
• Specifications: 5/16 in L Wire Strip, 1/4 in Dia Vinyl Insulation, 0.23 in Clearance, Fork Shape Enclosure
• Temperature Rating: 221 deg F
• Tongue Size: 0.3 in W x 0.04 in THK
• Tongue Type: Locking Fork
• Type: Loose Piece
• Voltage Rating: 600 VAC
• Conductor Size: #10
• Max Operating Temperature: 105 degrees C
• Size: 8 in
• Split Crucible: S
• Standard: CSA,E2186,UL
• TC Connection: Funnel Entry
• Tongue Thickness: 0.04 in
• Tongue Width: 0.3 in
• Voltage: 600 Volt
• Wire Size: 12-10 AWG
• Packaging: Pkg Qty 50
• Sub Brand: Pan-Term®
• 12-Digit UPC: 074983808342
• GTiN: 00074983808342
• Product UPC: 07498380834
• UNSPSC: 39121409
• ARRA Compliant: Yes
• Buy American Compliant: Y
• CE Compliant: No,No
• Country of Origin: Mexico
• Hazmat Flag: No
• Standards and Certifications: Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Enclosure: Fork shape
• Color: Yellow
