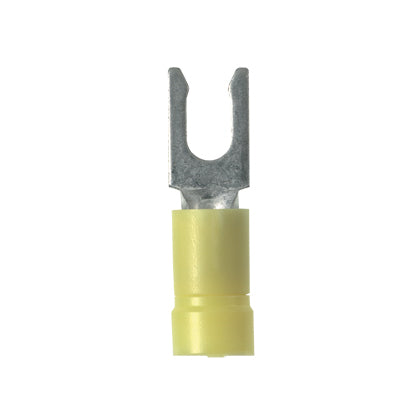

Panduit PV10-8LF-L Locking Fork Terminal

Product Description

The Panduit PV10-8LF-L Locking Fork Terminal is designed for secure wire connections. This terminal features a locking tongue design that ensures a secure connection. The brazed seam on the terminal barrel protects against splitting during crimping, while barrel serrations provide optimal wire contact and maximum tensile strength.

• Locks securely in place for reliable connections.
• Easy installation without needing to remove fasteners.
• Vinyl insulation prevents wire damage during bending.

Product Highlights

The PV10-8LF-L terminal meets UL and CSA standards, making it ideal for electrical applications that require durability and high voltage ratings.

Product Information

Standard Information

• Manufacturer: Panduit
• Color: Yellow

Technical Specifications

• Type: Locking Fork Terminal
• Material: Copper
• Insulation: Vinyl
• Size: #8
• Wire Size: #10 AWG
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Standard: UL Listed 587H E52164; CSA Certified LR31212
