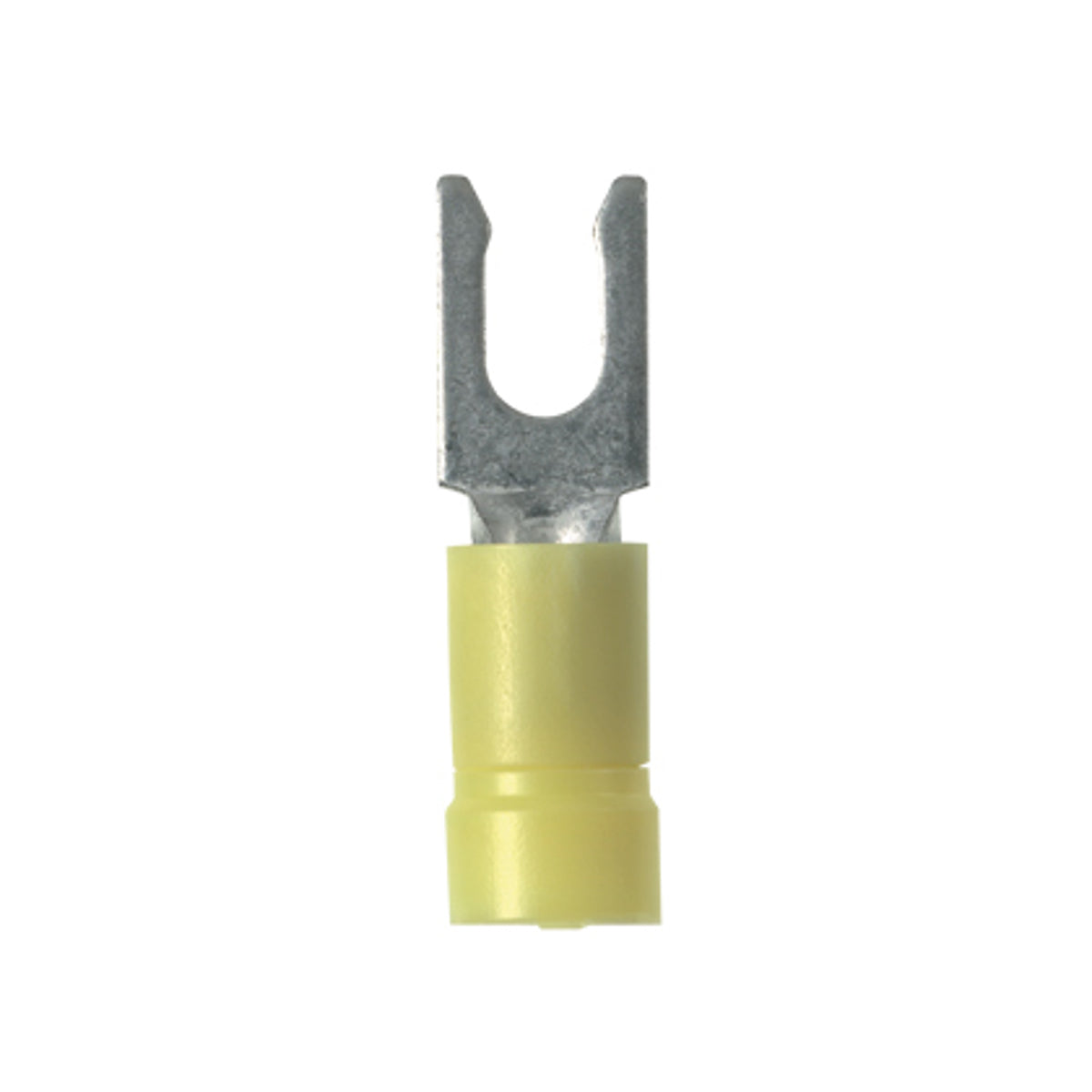

Panduit PV10-8LF-L Locking Fork Terminal

Product Description

The Panduit PV10-8LF-L is a locking fork terminal designed for secure wire connections. This vinyl insulated terminal features a locking tongue that ensures a tight fit. It minimizes the risk of splitting during crimping due to a brazed seam. Barrel serrations enhance wire contact, providing good tensile strength.

• Locks in place for secure connection.
• Fork design for quick installation without removing the fastener.
• Insulation support prevents wire damage during bending.

Product Highlights

Ideal for electricians and technicians, the PV10-8LF-L is UL and CSA rated for use up to 600 volts. The maximum insulation temperature is rated at 221 degrees Fahrenheit (105 degrees Celsius). The locking mechanism provides confidence in the strength and reliability of connections.

Product Information

Standard Information

• Catalog Number: PV10-8LF-L
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico

Technical Specifications

• Type: Locking Fork Terminal
• Material: Copper
• Finish: Tin-Plated
• Color: Yellow
• Insulation: Vinyl
• Voltage Rating: 600 Volts
• Wire Size: #10 AWG
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Connection: Funnel Entry
• Standard: UL Listed, CSA Certified
