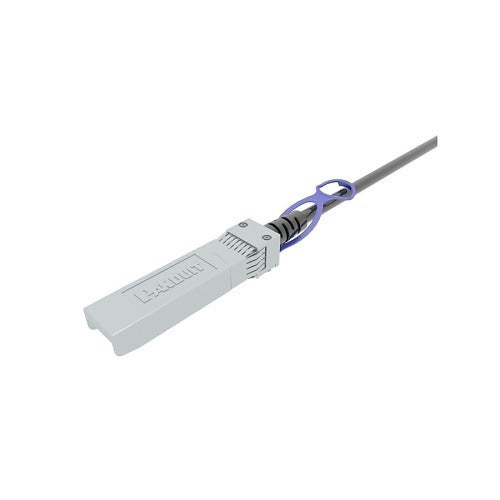

Panduit PSF1PZC5MBU Sfp+ 10gbe Direct Attach Cable

Product Description

The PANDUIT PSF1PZC5MBU is an SFP+ direct attach passive copper cable designed for 10 Gigabit Ethernet connectivity in structured cabling and data networking environments. Direct attach cables (DACs) provide a cost-effective, low-latency alternative to optical transceivers for short-reach switch-to-server or switch-to-switch links. The passive design requires no active components or signal conversion, drawing minimal power from the host port. This cable is installed by network technicians and data center cabling professionals working in high-density rack environments.

This DAC cable is suited for use in top-of-rack and end-of-row switching architectures common in enterprise data centers, colocation facilities, and server rooms. It connects SFP+ ports on compatible 10GbE switches, network interface cards, and storage equipment. The passive copper construction makes it a practical choice for intra-rack runs where short cable distances are the norm.

Key Features

• SFP+ form factor on both ends for direct port-to-port connectivity
• Passive copper design with no active signal conversion components
• Supports 10 Gigabit Ethernet (10GbE) data rates
• Low-latency connection suitable for high-performance computing and storage links
• Sold as a single unit (each)

Compatibility

Designed as an OEM-style direct attach cable for use with SFP+ port-equipped 10GbE switches, server network interface cards, and storage devices accepting standard SFP+ DAC connections.

Installation Notes

Installation is performed by qualified network or data center cabling technicians. Power down or administratively disable the target ports before seating or removing SFP+ connectors where required by equipment guidelines. Insert the SFP+ connector firmly until the latch clicks; do not force the connector. Follow TIA-568 and equipment manufacturer guidelines for cable management and bend radius in high-density enclosures.
