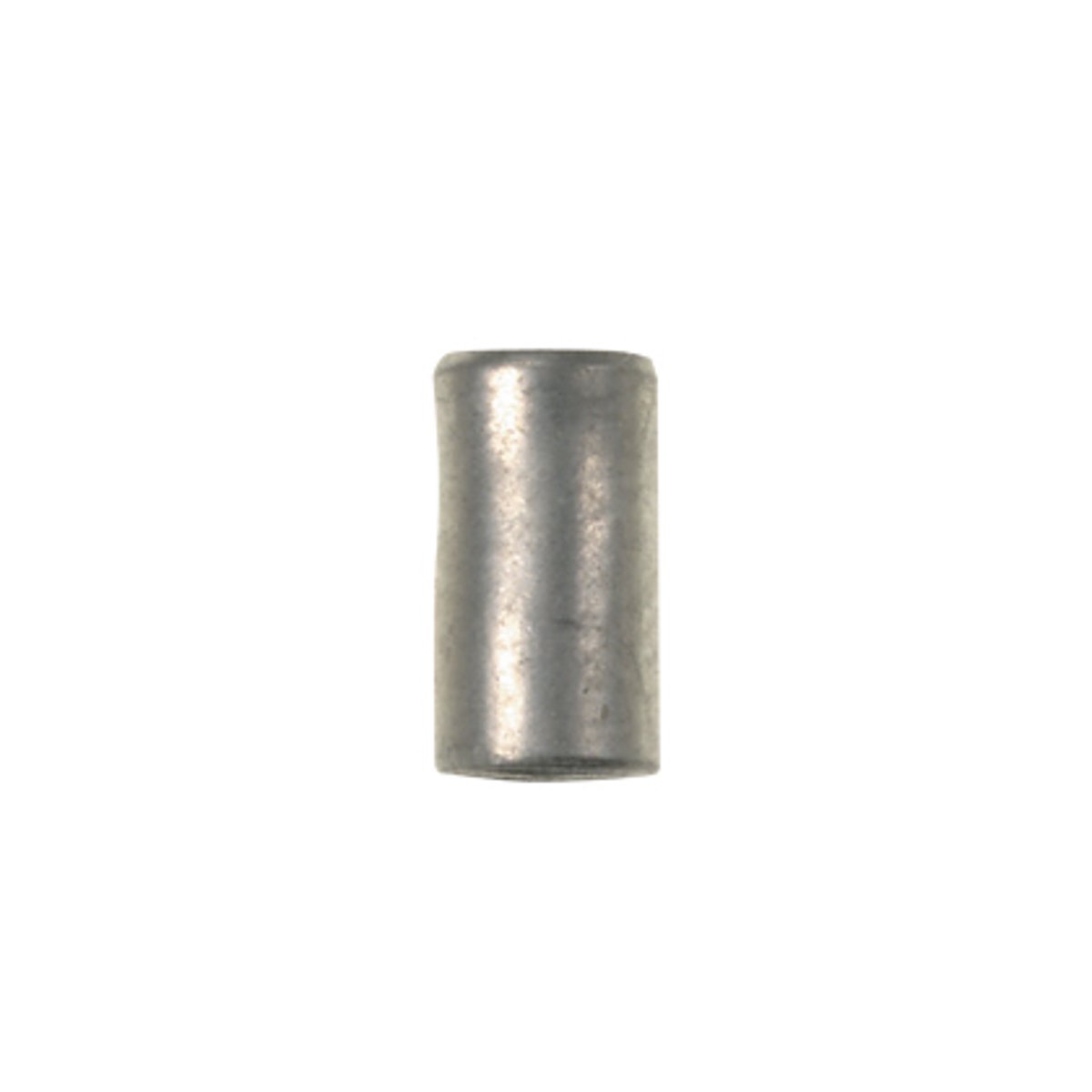

Panduit PS16-C Pan-Term Parallel Splice 20 AWG - 16 AWG

Product Description

The Panduit PS16-C Pan-Term parallel splice is a non-insulated connector designed for creating parallel connections. This splice is suitable for wire sizes ranging from 20 AWG to 16 AWG. The parallel design requires only one crimp to complete the splice. It features a seamless tubular barrel that provides a consistent, high-performance crimp.

• Designed to splice two solid or stranded wires together to repair or lengthen wires
• Non-insulated barrel can be used to provide an economical termination when insulation is not required
• Parallel design results in only one crimp required to complete splice

Product Highlights

Non-insulated parallel splice for 20-16 AWG wires, featuring a seamless barrel design and standard tin-plated finish.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PS16-C
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: PS16-C
• Manufacturer: Panduit Corp
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Metallic
• Connection: Standard
• Finish: Tin-Plated
• Insulation: Non-Insulated
• Material: Brass
• Standard: UL 486C, CSA C22.2 No.65
• UPC: 074983834020
• GTIN: 00074983834020
• Item Type: Parallel Splice
• Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
• Voltage Rating: 2000
• Wire Size: 20 AWG - 16 AWG AWG
• Category: Connectors, Interconnects
• Terminals: Wire Splice Connectors
• Number of Wire Entries: 2
• Termination: Crimp
• Series: Pan-Term
• Wire Gauge: 16-20 AWG
• Packaging: Bulk
• Part Status: Obsolete
• Base Product Number: PS16
• Terminal Type: Inline, Individual Openings (Parallel)
• Manufacturer Part Number: PS16-C
• Barrel Length: 0.29 in
• Barrel Type: Seamless Tubular
• Conductor Size: 20-16 AWG
• Tc Connection: Standard
• Type: Parallel Splice
• Voltage: 2,000 Volt
• Overall Length: 0.29 in
• Height: 0.16 Inch
• Length: 0.29 Inch
• Width: 0.16 in
• ARRA Compliant: Yes
• Buy American Compliant: Y
• CA Prop65 Warning: No
• CE Compliant: No,No
• Haz Mat Flag: No
• Standards and Certifications: Standards Met: UL 486C, CSA C22.2 No.65
• Prop 65: No
• Brand Name: Panduit
• Conductor Type: Solid/Stranded Copper
• Special Features: Designed to splice two solid or stranded wires together to repair or lengthen wires Non-insulated barrel can be used to provide an economical termination when insulation is not required Parallel design results in only one crimp required to complete splice Seamless tubular barrel provides a consistent high performance quality crimp Standard barrel configuration
• Sub_Brand: Panduit
• Temperature_Rating: 302
• Mounting: 5/16
• Package_Quantity: 100
