Product Description

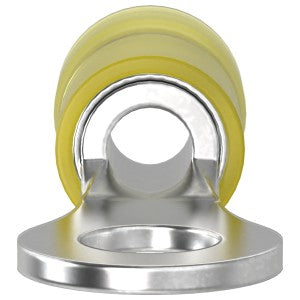

The PANDUIT PNF10-10R-D ring terminal connector is designed for circular 10 stud connections with 10-12 AWG wires. It features a serrated termination for secure wire contact. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief for high vibration applications.
- Serrated Termination
- Nylon insulated
- Ring terminal with funnel entry
Product Highlights
This ring terminal ensures reliable connections in demanding environments, offering both electrical performance and mechanical durability.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: PNF10-10R-D
-
Country of Origin: Mexico
Technical Specifications
-
Category: Connectors, Interconnects
-
Terminals: Ring Connectors
-
Termination: Crimp
-
Manufacturer: Panduit Corp
-
Wire Gauge: 10-12 AWG
-
Series: Pan-Term
-
Insulation: Insulated
-
Packaging: Bulk
-
Features: Serrated Termination
-
Part Status: Active
-
Color: Yellow
-
Terminal Type: Circular
-
Contact Material: Copper
-
Stud/Tab Size: 10 Stud
-
Contact Finish: Tin
-
Thickness: 0.040" (1.02mm)
-
Insulation Diameter: 0.230" (5.84mm)
-
Width - Outer Edges: 0.370" (9.40mm)
-
Material - Insulation: Polyamide (PA), Nylon
-
Length - Overall: 1.060" (26.92mm)
-
Base Product Number: PNF10
-
Mounting Type: Free Hanging (In-Line)
-
RoHS Status: ROHS3 Compliant
-
ECCN: EAR99
-
Moisture Sensitivity Level (MSL): Not Applicable
-
HTSUS: 8536.90.4000
-
REACH Status: REACH Unaffected
-
Country of Origin: MX - Mexico
-
UPC: 07498381026
-
UNSPSC: 39121409
-
Brand: Pan-Term
-
Finish: Tin-Plated
-
Standard: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-112)
-
Material: Copper
-
Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
-
Conductor Size: 12-10 AWG
-
Flammability Rating: UL94-HB
-
Insulation Material: Nylon
-
Rated Voltage: 600V
-
Stud Size: #10
-
Lug Wire Size: 12-10 AWG
-
Color Family: Yellow
-
Length: 1.06 in.
-
Width: 0.37 in.
-
Max. Temperature Rating: 221
F
-
AWG Size: 12-10AWG
-
Quantity: 500 Piece
