Panduit PN14-10LFN-C Pan-Term® Locking Fork Terminal #10

Product Description

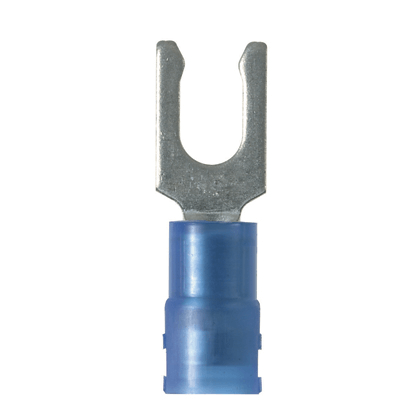

The PANDUIT PN14-10LFN-C Pan-Term® non-insulated narrow locking fork terminal ensures a secure connection and fast installation. Ideal for various electrical applications. It is designed for 18-14 AWG wires, with a #10 stud size and narrow tongue, guaranteeing a snug fit for optimal conductivity.

• Locks in place for secure connection
• Fork design provides for fast and easy installation, without the need to remove fastener
• Internal barrel serrations assure good wire contact and maximum tensile strength

Product Highlights

This terminal features a locking fork design, internal barrel serrations, and a beveled barrel for easy wire insertion.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN14-10LFN-C
• Country of Origin: United States of America

Technical Specifications

• Fork Type: Locking Fork Narrow
• Insulation Material: Nylon
• Insulation Type: Nylon Insulated
• Copper Conductor Size: 18-14 AWG
• Wire Size: 18-14 AWG
• Maximum Metric Conductor Size (mm ): 2.5
• Minimum Metric Conductor Size (mm ): 1
• Stud Size: #10
• Wire Strip Length (In.): 9/32
• Wire Strip Length (mm): 7.1
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (V): 2000
• Maximum Voltage (kV): 2
• Base Material: Copper
• Finish/Coating: Tin-Plated
• Color Code: Metallic
• Barrel Type: Beveled
• Barrel Length (In.): 0.27
• Barrel Length (mm): 6.7
• Maximum Operating Temperature ( C): 150
• Maximum Operating Temperature ( F): 302
• Seam Type: Brazed
• Outer Diameter (In.): 0.16
• Outer Diameter (mm): 4.1
• Stud Hole Size (In.): #10
• Stud Hole Size (mm): 5
• Inside Diameter (In.): 0.09
• Inside Diameter (mm): 2.3
• Overall Length (In.): 0.77
• Overall Length (mm): 19.6
• Overall Width (In.): 0.29
• Overall Width (mm): 7.4
• Tongue Length (In.): 0.51
• Tongue Length (mm): 12.8
• Tongue Width (In.): 0.29
• Tongue Width (mm): 7.4
• Tongue Thickness (In.): 0.03
• Tongue Thickness (mm): 0.8
• Sub Brand: Pan-Term®
• Product Type: Locking Fork Terminal
• For Use With: CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
• Manufacturer: Panduit
• Manufacturer Part Number: Panduit PN14-10LFN-C
• Temperature Rating: 221 Deg F
• Type: Standard, Locking, Narrow Tongue
