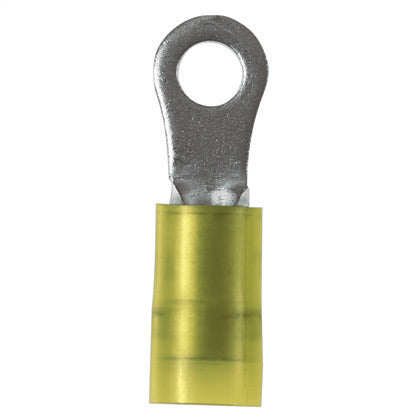

Panduit PN12-14HDR-L Ring Terminal 12-16 AWG 1/4 Stud

Brand: PANDUIT
SKU: PN12-14HDR-L
Availability: In Stock

Ships same day if ordered by 12 pm
$95.29
$95.29
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The PANDUIT PN12-14HDR-L ring terminal is designed for reliable electrical connections, accommodating 12-16 AWG wires with a 1/4" stud size. This terminal connector ensures secure attachment. The tin-plated finish provides excellent corrosion resistance for longevity. The nylon yellow insulation adds durability and color coding for easy identification.

  • Heavy Duty
  • Serrated Termination
  • Features terminal connector

Product Highlights

The PANDUIT PN12-14HDR-L ring terminal ensures secure electrical connections with corrosion resistance and easy identification.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: PN12-14HDR-L
  • Country of Origin: MX - Mexico
Technical Specifications
Category
Connectors, Interconnects
Termination
Crimp
Manufacturer
Panduit Corp
Wire Gauge
12-16 AWG
Series
Pan-Term
Insulation
Insulated
Packaging
Bulk
Features
Heavy Duty, Serrated Termination
Part Status
Active
Color
Yellow
Terminal Type
Circular
Contact Material
Copper
Stud/Tab Size
1/4 Stud
Contact Finish
Tin
Thickness
0.050" (1.27mm)
Insulation Diameter
0.230" (5.84mm)
Width - Outer Edges
0.520" (13.21mm)
Material - Insulation
Polyamide (PA), Nylon
Length - Overall
1.240" (31.50mm)
Base Product Number
PN12
Mounting Type
Free Hanging (In-Line)
Brand
Pan-Term
Finish
Tin-Plated
Standard
UL Listed 587H E52164, CSA Certified LR31212
Material
Copper
Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH)
Conductor Size
16-12 AWG
Flammability Rating
UL94V-2/UL94-HB
Insulation Material
Nylon
Rated Voltage
600V
Stud Size
1/4 in.
Lug Wire Size
16-12 AWG
Color Family
Yellow
Length
1.2 in.
Width
0.5"
Max. Temperature Rating
221 F
Brand Name
Panduit
Manufacturer Part Number
PN12-14HDR-L
Packaged Quantity
50
Product Name
Terminal Connector
Product Type
Terminal Connector
Connector Plating
Tin
Environmentally Friendly
Yes
Volts AC
600
Allowable Gauge Range
16 - 12
