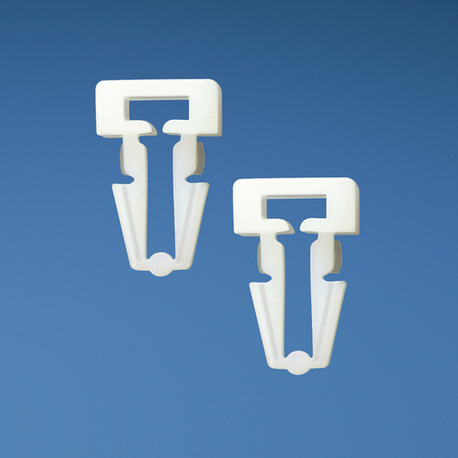

Panduit pm2h25-m Push Barb Cable Tie Mount 1000 Pack

Product Description

The PANDUIT pm2h25-m is a push barb cable tie mount designed for securing and organizing cables and wire bundles in electrical and data installations. The barbed shank presses into a 0.25 inch panel hole and locks in place without tools or hardware, providing a fast, reliable anchor point for standard cable ties. Molded from nylon in a natural color, this mount measures 0.38 inches wide, 0.62 inches tall, and 0.3 inches in overall length. It is rated for operating temperatures from -60 degrees C to 85 degrees C, making it suitable for both indoor and light industrial environments. Electricians and low-voltage installers are the primary trades who use this component.

This mount is used wherever cables, wiring harnesses, or conduit bundles need to be routed and secured to a panel, enclosure wall, or chassis with a 0.25 inch pre-drilled or punched hole. Typical applications include control panels, electrical enclosures, HVAC equipment wiring, automotive harness work, and data rack installations. The push-in installation method speeds up production assembly and field service work. Sold in packages of 1000 units, this mount suits both large-scale production runs and ongoing maintenance stock.

Key Features

• Push barb design installs into a 0.25 inch hole without additional hardware or tools
• Nylon construction resists moisture and common chemicals in panel and enclosure environments
• Wide operating temperature range: -60 degrees C to 85 degrees C
• Natural color for standard visibility in enclosures and panels
• Compact profile: 0.38 inches wide, 0.62 inches tall, 0.3 inches overall length
• Packaged in quantities of 1000 for high-volume installation and stocking

Compatibility

Designed as an OEM-style panel mount for use with standard cable ties in electrical enclosures, control panels, and wire management applications requiring a 0.25 inch mounting hole.

Installation Notes

Installation is performed by electricians and low-voltage technicians. Power down or de-energize any panel or enclosure before installing mounts or routing cables. Ensure the mounting surface has a clean 0.25 inch hole before pressing the barb shank through; the barb locks on insertion and is not intended to be reused once removed. Follow applicable NEC guidelines for wire management and bundling inside enclosures.

Technical Specifications

• Material: Nylon
• Product Color: Natural
• Required Hole Size: 0.25 inches
• Width: 0.38 inches
• Height: 0.62 inches
• Overall Length: 0.3 inches
• Max Operating Temperature: 85 degrees C
• Min Operating Temperature: -60 degrees C
• Package Quantity: 1000
• Package Weight: 1 pound
• Carton Quantity: 5000
• Carton Weight: 5 pounds
• UPC: 74983583614

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: pm2h25-m
