Panduit PLC2S-S10-C Pan-Ty Clamp Tie

Product Description

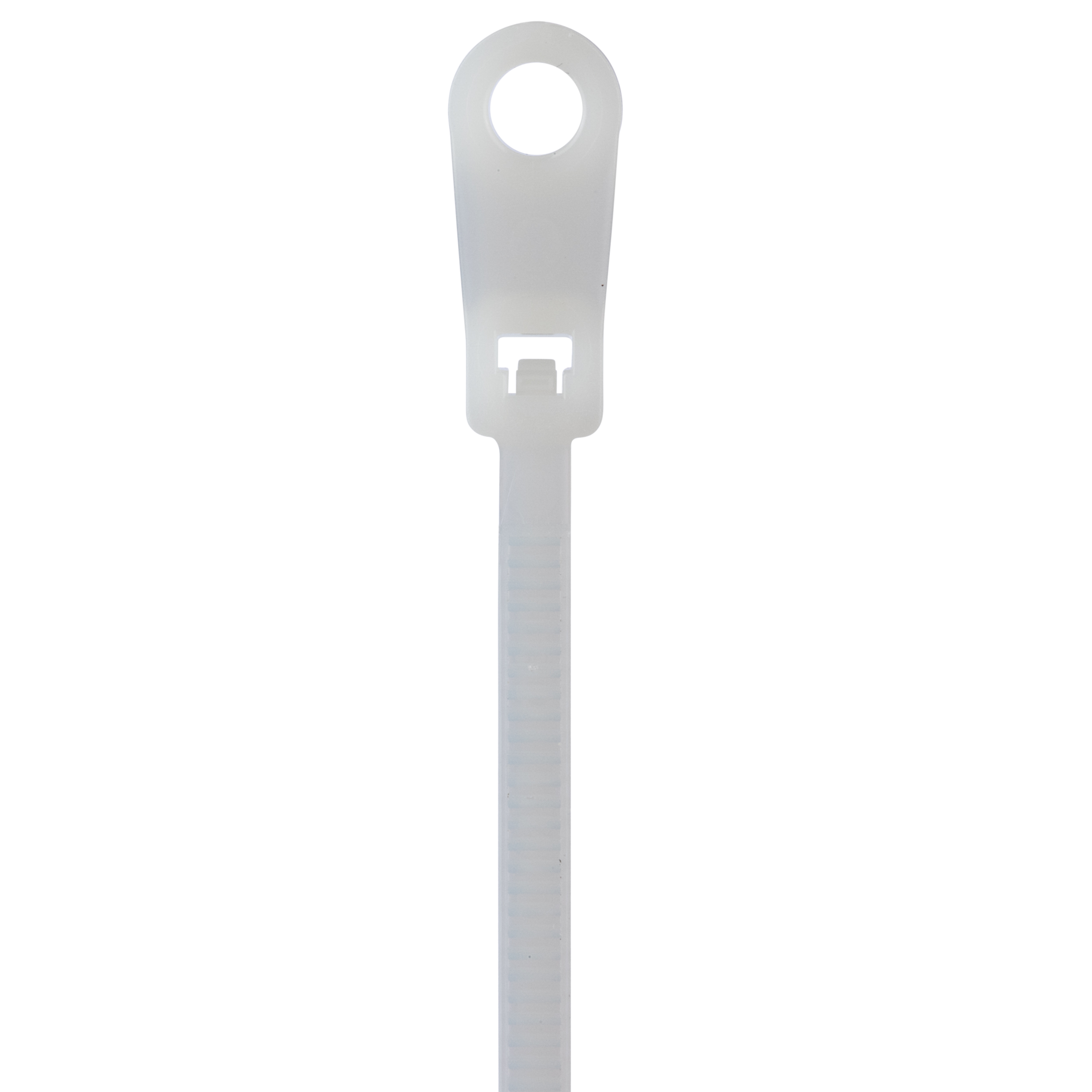

The PANDUIT PLC2S-S10-C is a Pan-Ty clamp tie. These locking clamp cable ties are used to secure cable bundles to another surface such as a control panel, wall, or ceiling. The cable tie design allows for bundling before or after screwing the clamp in place and is for use with a #10 (M5) screw.

• Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
• Cable tie design allows for bundling before or after screwing clamp in place
• For use with #10 (M5) screw

Product Highlights

Standard cross section, 7.9" (201mm) length. Made of Nylon 6.6, are natural in color and come in packages of 100.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PLC2S-S10-C
• Country of Origin: MY,SG

Technical Specifications

• Manufacturer: Panduit Corp.
• Brand: Panduit
• Model / MPN: PLC2S-S10-C
• MPN: PLC2S-S10-C
• Pkg Quantity: 1.0
• Product Segment: IEI
• Product Type: Locking Clamp Tie
• Color: Natural
• Environment: Indoor
• Material: Nylon 6.6
• Overall Length (In.): 7.9
• Overall Length (mm): 200.7
• Body Width (mm): 4.8
• Body Width (In.): 0.19
• Body Thickness (In.): 0.047
• Body Thickness (mm): 1.2
• Maximum Bundle Diameter (In.): 1.84
• Maximum Bundle Diameter (mm): 47
• Minimum Bundle Diameter (In.): 0.06
• Minimum Bundle Diameter (mm): 1.5
• Minimum Loop Tensile Strength (N): 222
• Minimum Loop Tensile Strength (lb): 50
• Screw Size: #10 (M5)
• Maximum Operating Temperature (C): 85
• Maximum Operating Temperature (F): 185
• Minimum Operating Temperature (C): -60
• Minimum Operating Temperature (F): -76
• Minimum Installation Temperature (C): -20
• Minimum Installation Temperature (F): -4
• Mounting Hole Width (In.): 0.373
• Mounting Hole Width (mm): 9.5
• Mounting Hole Diameter (mm): 5.1
• Mounting Hole Diameter (In.): 0.2
• Standards Met: CE Compliant; CSA Certified; UL 62275 Compliant (Type 2, 21); UL Listed; UL Recognized
• For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E
• Application: Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
• ECCN: EAR99
• UNSPSC: 39121703
• Standard: CE Compliant; CSA Certified; UL 62275 Compliant (Type 2, 21); UL Listed; UL Recognized
• Use With: GTS-E, GS2B-E, GTH-E, GS4H-E
• Bundle Diameter: 1.84 in.
• Duty Rating: Standard
• Hole Size: No. 10
• Tensile Strength: 50 lbs.
• Color Family: Natural
• Length: 7.9 in.
• Nominal Length: 7.9 in.
• Max. Temperature Rating: 185 F
• Body Thickness: 0.047 in
• Body Width: 0.19 in
• Sub Brand: Pan-Ty
• Thickness: 1.2 mm
• Width: 4.8 mm
• Buy American Compliant: Y
• CA Prop65 Warning: No
• Country of Origin: MY,SG
• Prop 65: No
• Max Operating Temperature: 185 degrees F
• Min Operating Temperature: -60 degrees C
• Temperature Rating: -60 to 85 degrees C
• Type: Standard Cross Section, Plenum, Halogen-Free
