Panduit PL2M2S-L MkrTie Wrap Std 7.4in

Product Description

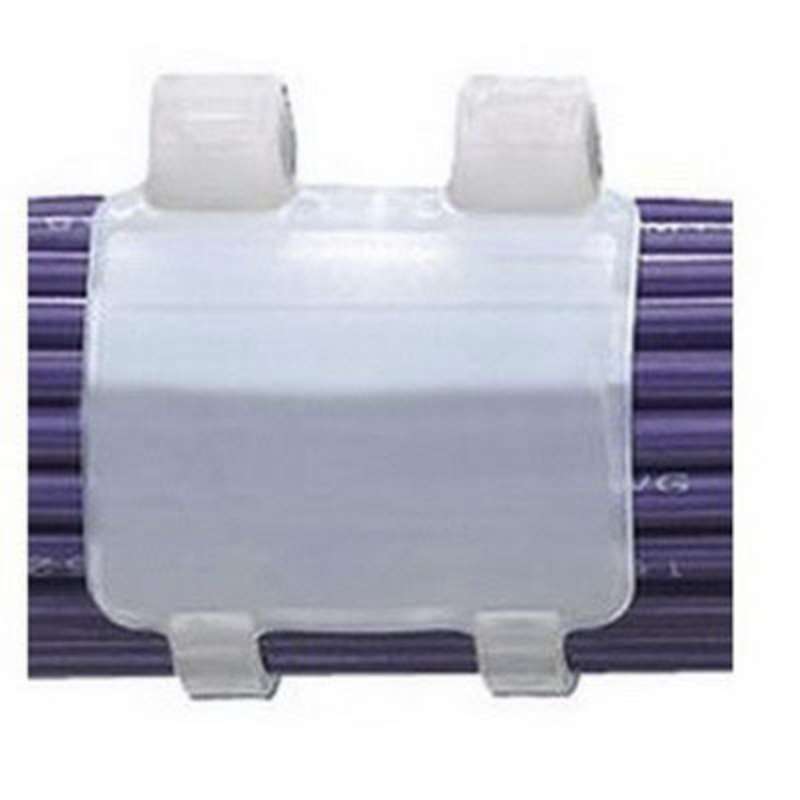

The PANDUIT PL2M2S-L is a Pan-Ty marker tie with a standard cross section. Measuring 7.4 inches (188mm) in length, it features a .87 x 1.07 inch (22.1 x 27.2mm) marker write-on area. Constructed from nylon 6.6, this tie is designed for indoor use to fasten and identify bundles simultaneously.

• For indoor use
• Used to fasten and identify bundles at the same time
• One-piece construction for consistent performance and reliability

Product Highlights

Ideal for cable organization, the Panduit marker tie offers efficient labeling and secure fastening in various settings.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PL2M2S-L
• Country of Origin: SG - Singapore

Technical Specifications

• Type: CABLES TIES AND ACCESSORIES
• UNSPSC Code: 39121703
• Category: Cables, Wires - Management, Cable Ties and Zip Ties
• Width: 0.185" (4.70mm)
• Manufacturer: Panduit Corp
• Length - Actual: 0.617' (187.96mm, 7.40")
• Series: PAN-TY PLM
• Mounting Type: Free Hanging (In-Line)
• Tensile Strength: 50 lbs (22.68 kg)
• Part Status: Active
• Features: Write-On Area
• Wire/Cable Tie Type: Marker Strap/Flag Tie
• Material: Nylon 6.6
• Length - Approximate: 7.5"
• Bundle Diameter: 1.75" (44.45mm)
• Base Product Number: PL2M2S
• ECCN: EAR99
• Standard: CE Compliant,RoHS Compliant
• Application: General
• Use With: Bundles
• Write-On Area: 0.87 x 1.07 in.
• Color Family: Natural
• Length: 7.4 in.
• Nominal Length: 7.4 in.
• Max. Temperature Rating: 185 F
• Manufacturer Part Number: Panduit PL2M2S-L
• Maximum Operating Temperature: 185 F, 85 C
• Minimum Operating Temperature: -60 C, -70 F
• Overall Width: .19 in, 4.7 mm
• Overall Length: 188 mm, 7.4 in
• Maximum Bundle Diameter: 1.75 in, 45 mm
• Product: Marker & Flag Cable & Wire Ties
• Product Type: Wrap
• Environment Application: indoor
• Minimum Bundle Diameter: .37 in, 9.5 mm
• Marker Write On Area: 601.1 mm , .93 in
• Part Aliases: MS3368-3-9C
• SKU: PANPL2M2S-L
• Cable Tie Material: Nylon 6.6 (Polyamide 6.6)
• Cable Tie Colour: Natural
• Cable Tie Length: 188mm
• Cable Tie Width: 4.7mm
• Cable Bundle Diameter Max: 45mm
• Minimum Loop Tensile Strength: 50lb
• Cable Tie Type: Standard
• Product Range: Pan-Ty Series
• UV Resistant (Yes/No): No
• Locking Style: Plastic Pawl
• Standards Met: CE Compliant, CSA Certified, UL Listed File No 62275 Compliant, RoHS Compliant
• Cable Bundle Diameter Min: .37 in, 9.5 mm
