Panduit P8-38R-Q Ring Terminal 8 AWG 3/8 Stud

Brand: PANDUIT
SKU: P8-38R-Q
Availability: In Stock

Ships same day if ordered by 12 pm
$53.46
$53.46
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

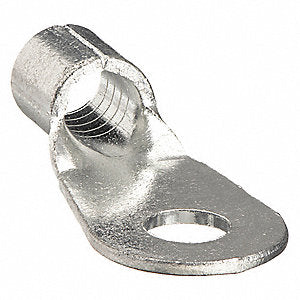

The PANDUIT P8-38R-Q is a ring terminal designed for secure connections. Constructed from copper with a tin finish, it accommodates 8 AWG wire and features a 3/8" stud size. The brazed seam protects against splitting during crimping, ensuring maximum tensile strength. Ideal for high-vibration environments.

  • Brazed seam protects terminal barrel from splitting during crimp process
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Ring tongue design assures a secure connection in high vibration applications

Product Highlights

This non-insulated ring terminal ensures a reliable electrical connection with its durable construction and secure design.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: P8-38R-Q
  • Country of Origin: Mexico
Technical Specifications
Category
Connectors, Interconnects
Terminals
Ring Connectors
Mounting Type
Free Hanging (In-Line)
Manufacturer
Panduit Corp
Termination
Crimp
Series
Pan-Term
Wire Gauge
8 AWG
Packaging
Bulk
Insulation
Non-Insulated
Part Status
Active
Features
Brazed Seam
Terminal Type
Circular
Contact Material
Copper
Stud Size
3/8 in
Contact Finish
Tin
Thickness
0.040" (1.02mm)
Insulation Diameter
0.280" (7.11mm)
Width - Outer Edges
0.590" (14.99mm)
Base Product Number
P8-38
Length - Overall
1.250" (31.75mm)
Barrel Size
0.27 in OD
Barrel Type
Brazed Seam/Standard
Conductor Size
8 AWG
Conductor Type
Stranded Copper
Finish
Tin Plated
Material
Copper
Temperature Rating
302 deg F
Tongue Size
0.59 in W x 0.04 in THK
Type
Type P-R Large Wire Loose Piece Non-Insulated
Voltage Rating
2000 V AC
Insulation Coverage
None
Maximum Voltage
2,000V
Standards
CSA C22.2 No. 65, UL 486A, UL 486B
Terminal Shape
Ring Terminal
Tongue Width
0.59 in
Barrel Length
0.48 in
Barrel Style
Serrated Barrel
Hole Diameter
0.39 in
Overall Length
1.25 in
Strip Length
3/8 in
Tongue Thickness
0.04 in
Insulation Colour
Bare
Insulation Material
None
Maximum Operating Temperature
302 Degrees F
Maximum Wire Size
8 AWG
Seam Style
Brazed
Tongue Length
0.95 in
Barrel Inside Diameter
0.19 in
Barrel Outside Diameter
0.27 in
Compatible Manufacturer Model Number
CD-2600-8, CT-1701, CT-2600
Minimum Operating Temperature
302 Degrees F
Special Features
Ring Tongue Design Assures a Secure Connection in High Vibration Applications
Termination Style
Crimp
