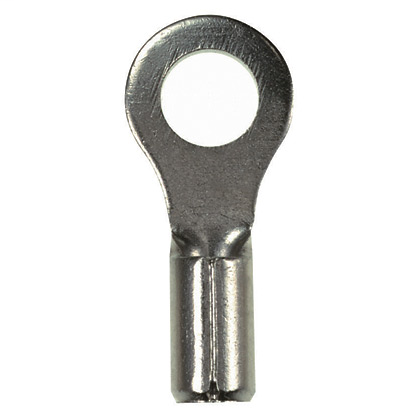

Panduit P14-8RHT6-C Ring Terminal #8

Product Description

The PANDUIT P14-8RHT6-C is a ring terminal designed for high-temperature electrical connections. Suitable for 14-18 AWG wires and featuring a #8 stud size, this non-insulated terminal ensures durability and reliable performance in demanding industrial environments. It features a brazed seam and serrated termination for a secure connection.

• Brazed Seam
• Serrated Termination
• Maximum operating temperature of 343°C (650°F)

Product Highlights

High-temperature ring terminal with a #8 stud size, non-insulated, and suitable for 14-18 AWG wires.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P14-8RHT6-C
• Country of Origin: Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Length - Overall: 0.710" (18.03mm)
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: Pan-Term
• Termination: Crimp
• Packaging: Bulk
• Wire Gauge: 14-18 AWG
• Part Status: Active
• Insulation: Non-Insulated
• Terminal Type: Circular
• Features: Brazed Seam, Serrated Termination
• Stud/Tab Size: 8 Stud
• Contact Material: Copper
• Thickness: 0.030" (0.76mm)
• Contact Finish: Nickel
• Width - Outer Edges: 0.310" (7.87mm)
• Base Product Number: P14
• Maximum Operating Temperature: 343 C, 650 F
• Voltage: 2000 V, 2 kV
• Outside Diameter: .31 in, 7.9 mm
• Material: Copper
• Barrel Length: .28 in, 7 mm
• Barrel Type: Brazed Seam
• Finish: Nickel-Plated
• Conductor Size: 18-14 AWG
• Inner Diameter: 0.09 in.
• Outer Diameter: 0.31
• Rated Voltage: 2000V
• Stud Size: #8
• Lug Wire Size: 18-14 AWG
• Color Family: Silver
• Length: 0.71 in.
• Max. Temperature Rating: 650 F
