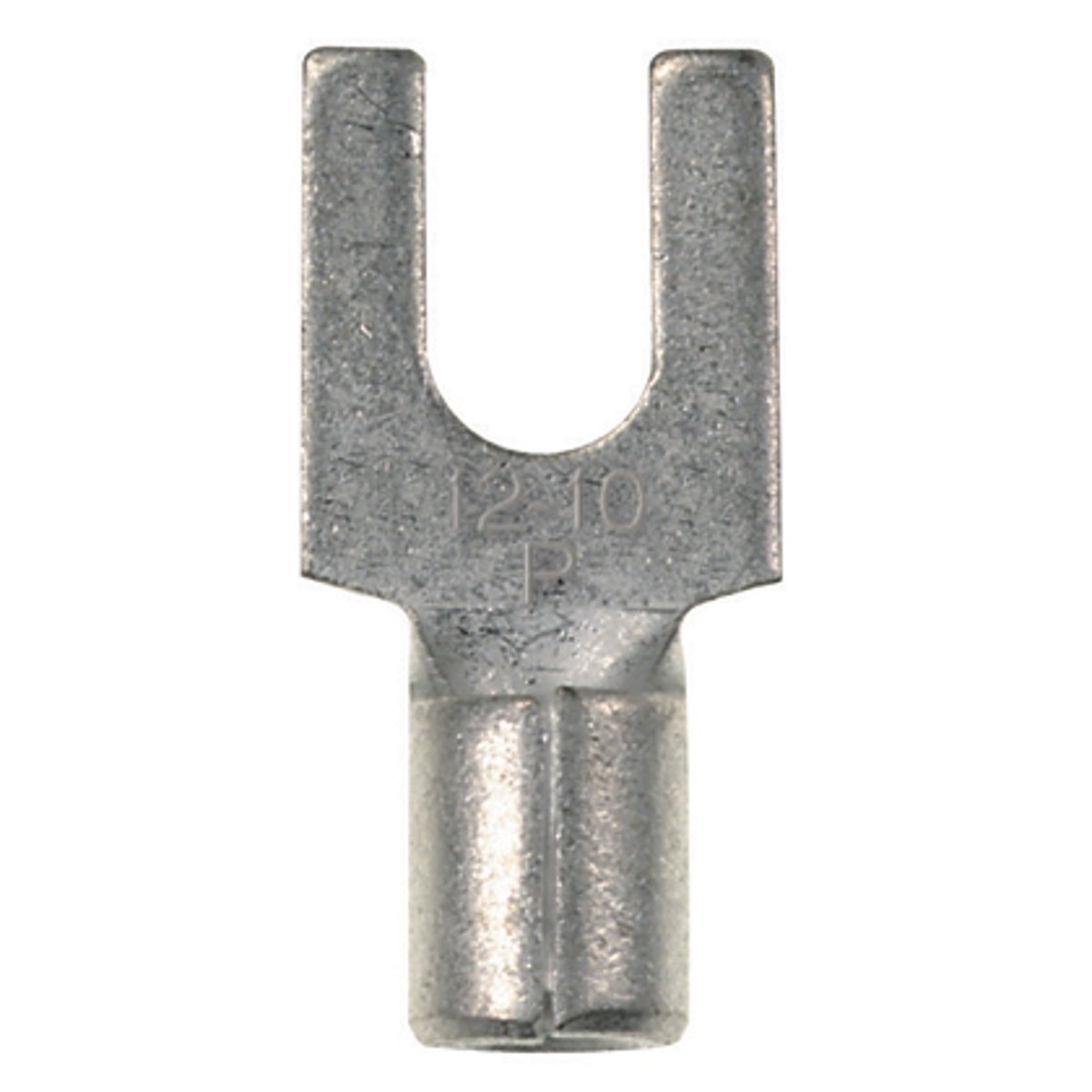

Panduit P14-8F-C Pan-Term Fork Terminal

Product Description

The PANDUIT P14-8F-C Pan-Term Fork Terminal, from the P-F Series, is designed for copper stranded conductors. Suitable for #14 conductor and M4 stud, it features a brazed seam barrel and a standard fork tongue. It has a voltage rating of 2000 V and a temperature rating of 302 deg F.

• Fork design provides for fast and easy installation, without the need to remove fastener
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Insulation support helps to prevent wire damage in bending applications

Product Highlights

The PANDUIT P14-8F-C ensures secure wire contact and maximum tensile strength with its internal barrel serrations.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P14-8F-C
• Country of Origin: Mexico

Technical Specifications

• Barrel Size: 0.09 in ID x 0.16 in OD
• Color: Metallic
• Conductor Size: #14
• Conductor Type: Copper Stranded
• Finish: Tin Plated
• Length: 0.69 in
• Manufacturer Part Number: P14-8F-C
• Material: Copper
• Series: P-F Series
• Specifications: 9/32 in L Wire Strip, 0.23 in Clearance, Standard Barrel Configuration, Fork Shape Enclosure
• Standards/Approvals: ABS Approved|ARRA Compliant|Buy American Act Compliant|CSA C22.2 No. 65|RoHS Compliant|UL 486A|UL 486B/587H File No. E52164
• Stud Size: M4
• Temperature Rating: 302 deg F
• Tongue Size: 0.31 in W x 0.03 in THK
• Tongue Type: Standard Fork
• Type: Loose Piece Non-Insulated
• Voltage Rating: 2000 V
