Panduit P14-4R-C Ring Circ 14-18awg #4 Crimp

Product Description

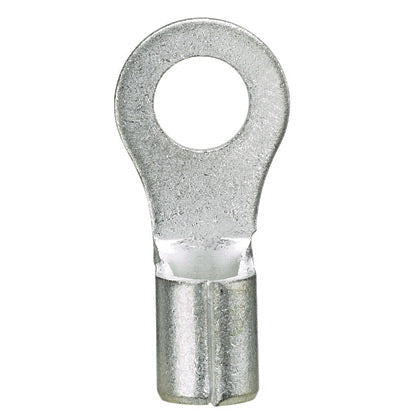

The PANDUIT P14-4R-C ring terminal connector is designed for secure connections in high-vibration environments. Suitable for 14-18 AWG wires and #4 studs, it features a crimp termination. The ring tongue design ensures a reliable connection. It has brazed seam protects the barrel during crimping.

• Brazed Seam
• Serrated Termination
• Ring tongue design assures a secure connection in high vibration applications

Product Highlights

The PANDUIT P14-4R-C ring terminal ensures secure wire contact and maximum tensile strength.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P14-4R-C
• Country of Origin: MX

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Length - Overall: 0.620" (15.75mm)
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: Pan-Term
• Termination: Crimp
• Wire Gauge: 14-18 AWG
• Part Status: Obsolete
• Insulation: Non-Insulated
• Terminal Type: Circular
• Features: Brazed Seam, Serrated Termination
• Stud/Tab Size: 4 Stud
• Contact Material: Copper
• Thickness: 0.030" (0.76mm)
• Contact Finish: Tin
• Width - Outer Edges: 0.250" (6.35mm)
