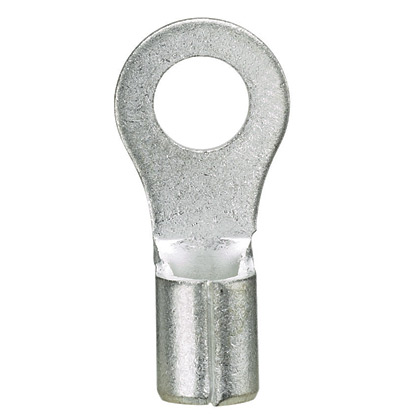

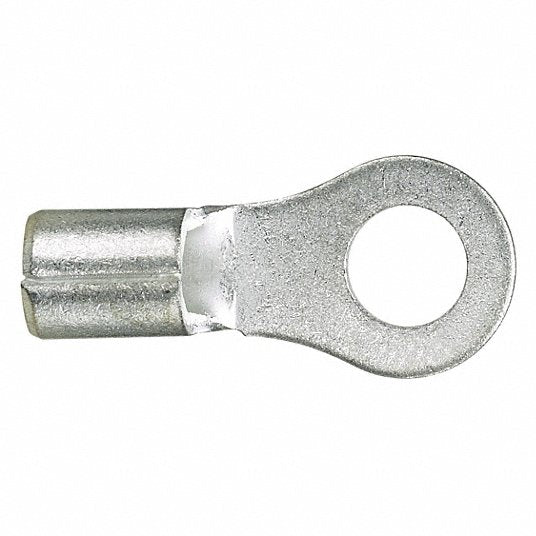

Panduit P10-8R-D Ring Terminal, Bare, 10-14 AWG, #8 Stud

Product Description

The Panduit P10-8R-D is a ring terminal designed for secure connections. This non-insulated ring terminal is suitable for 10-14 AWG wire sizes and features a #8 stud size. It allows for precise crimping and inspection of wire contact and tensile strength. It is suitable for higher-temperature applications.

• Brazed Seam
• Serrated Termination
• Ring Tongue Design Assures a Secure Connection in High Vibration

Product Highlights

The PANDUIT P10-8R-D ring terminal ensures a reliable connection, especially in high-vibration environments.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: P10-8R-D
• Country of Origin: Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Length - Overall: 0.780" (19.81mm)
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: Pan-Term
• Termination: Crimp
• Wire Gauge: 10-12 AWG
• Part Status: Active
• Insulation: Non-Insulated
• Terminal Type: Circular
• Features: Brazed Seam, Serrated Termination
• Stud/Tab Size: 8 Stud
• Contact Material: Copper
• Thickness: 0.040" (1.02mm)
• Contact Finish: Tin
• Width - Outer Edges: 0.310" (7.87mm)
• Base Product Number: P10
• Finish: Tin-Plated
• Standard: UL Listed 587H E52164, CSA Certified LR31212
• Material: Copper
• Use With: CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570)
• Conductor Size: 14-10 AWG
• Inner Diameter: 0.13 in.
• Outer Diameter: 0.22
• Rated Voltage: 2000V
• Stud Size: #8
• Lug Wire Size: 14-10 AWG
• Length: 0.78 in.
• Width: 0.31 in.
• Max. Temperature Rating: 302 F
• Barrel Length: 0.31 in
• Barrel Type: Beveled
• Color Coding: Silver
• Enclosure: Ring shape
• Max Operating Temperature: 150 degrees C
• Min Operating Temperature: 150 degrees C
• Size: #8
• Tc Connection: Standard
• Temperature Rating: 302 F
• Tongue Thickness: 0.04 in
• Tongue Width: 0.31 in
• Type: Ring Terminal
• Voltage: 2,000 Volt
• Wire Size: 10
• Sub Brand: Pan-Term
• Overall Length: 0.78 in
• Standards Met: UL Listed 587H E52164, CSA Certified LR31212
• Insulation Color: Bare
• Insulation Coverage: None
• Insulation Material: None
• Maximum Temperature: 302
• Maximum Voltage: 2,000
• Maximum Wire Size: 10
• Minimum Wire Size: 14
• Seam Style: Brazed
• Special Features: Ring Tongue Design Assures a Secure Connection in High Vibration
• Applications: Standards
• Terminal Shape: Ring
• Termination Style: Crimp
• Ring Length: 0.08 in
• Ring Thickness: 0.04 in
