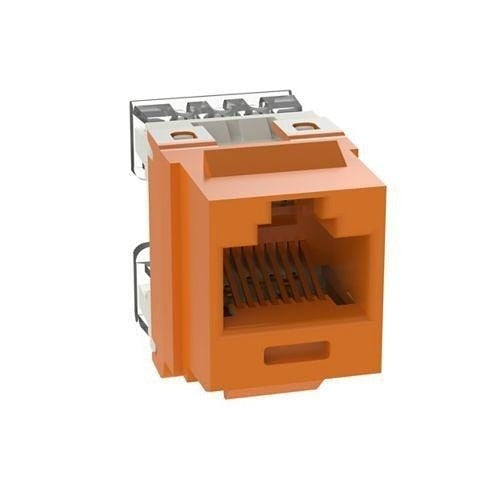

Panduit NKP5E88MOR-Q Cat 5e Punchdown Jack Module

Product Description

The PANDUIT NKP5E88MOR-Q is a Category 5e punchdown jack module designed for structured cabling installations in commercial and residential network infrastructure. This keystone-style jack accepts 110-style punchdown terminations and provides a reliable RJ45 interface for Ethernet data connections. The module is sold individually and integrates into standard patch panels or modular wall plates that support the NK series form factor. Licensed electricians, low-voltage cabling technicians, and datacom installers are the primary trades that work with this component.

This punchdown jack module is suited for horizontal cabling runs in office buildings, schools, healthcare facilities, and multi-unit residential installations. It terminates solid or stranded Cat 5e cable and supports 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet applications. The module fits into PANDUIT NK series patch panels and faceplates, making it a direct-fit component for new installations and moves, adds, and changes within existing NK series infrastructure.

Key Features

• Category 5e rated for Gigabit Ethernet and Fast Ethernet applications
• 110-style punchdown termination for solid or stranded conductors
• RJ45 interface for standard patch cord connectivity
• Single-unit packaging for individual port replacement or incremental builds
• Designed for integration with NK series patch panels and modular faceplates

Compatibility

Designed as a direct-fit punchdown jack module for use with PANDUIT NK series patch panels and faceplates that accept modular jack inserts.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician in accordance with applicable TIA-568 structured cabling standards. De-energize any adjacent powered equipment before beginning termination work. Use a 110-style punchdown tool to seat and trim conductors; do not pull cable pairs beyond the minimum bend radius. Follow the color-code sequence printed on the jack body for T568A or T568B wiring as required by the project specification.
