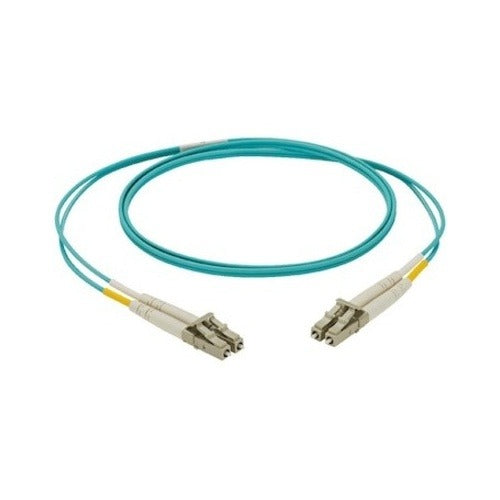

Panduit NKFPZ22RLLSM015 OM4 Lc Duplex Fiber Patch Cable

Product Description

The PANDUIT NKFPZ22RLLSM015 is a 2-fiber OM4 multimode fiber optic patch cable terminated with LC duplex connectors on both ends. Built with a 2mm round riser-rated jacket, it is designed for structured cabling installations in commercial and enterprise environments. The physical contact (PC) polish on each ferrule supports reliable low-loss connections in high-bandwidth backbone and horizontal runs. Network technicians and low-voltage cabling contractors install this cable to interconnect switches, patch panels, and active equipment in data center and campus riser pathways.

This patch cable is suited for riser-rated vertical runs between floors in commercial buildings, as well as shorter horizontal runs inside telecommunications rooms and data centers. The OM4 multimode specification supports high-speed applications including 10GbE, 40GbE, and 100GbE at appropriate distances. The LC duplex form factor is a common interface on modern switches, transceivers, and fiber patch panels, making this cable a standard choice for structured cabling moves, adds, and changes.

Key Features

• OM4 multimode fiber supports high-bandwidth, short-to-medium distance data center and campus links
• LC duplex connectors on both ends for compatibility with current-generation active equipment and patch panels
• Physical contact (PC) polish reduces back-reflection and insertion loss at each connection point
• 2mm round riser-rated jacket meets CMR flame-spread requirements for vertical building runs
• 2-fiber construction in a compact duplex form factor for efficient port and tray density

Compatibility

Designed as an OEM-style replacement and standard patch cord for OM4 multimode fiber installations using LC duplex interfaces in riser-rated structured cabling systems.

Installation Notes

Installation should be performed by a licensed low-voltage cabling technician or network infrastructure professional familiar with TIA-568 and BICSI cabling standards. Before patching, inspect ferrule end-faces with a fiber inspection scope and clean with appropriate lint-free tools. Do not bend the cable beyond its minimum bend radius, and avoid pinching or crushing the jacket during routing through conduit or cable trays. Ensure the riser pathway meets local building and fire code requirements before installation.
