Product Description

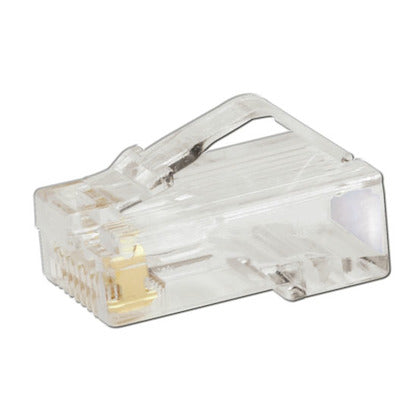

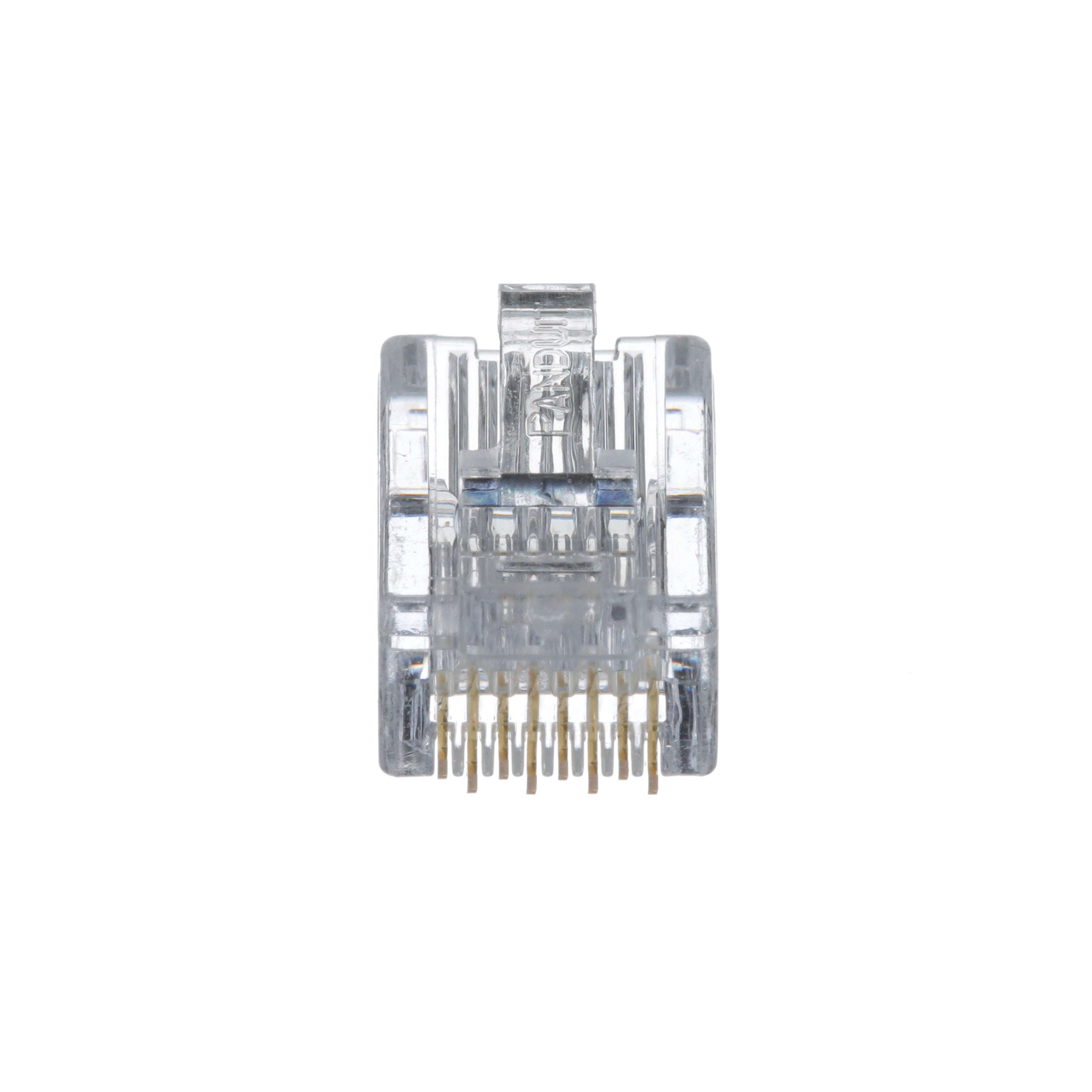

The Panduit MP588-C Pan-Plug Modular Plug is a 1-port, 8-position, 8-wire high-performance unshielded connector designed for T568A/T568B/UTP configurations. Constructed from polycarbonate, this clear Cat 5e connector is suitable for copper cables with a 24 AWG cable size. Its dimensions are 0.46 in W x 0.88 in D x 0.32 in H.
- Patented design prevents snags and ensures easy release.
- Robust construction is rated to 2500 mating cycles.
- Simplified termination requires no loading bar, with a guide ramp for easy conductor insertion.
Product Highlights
This modular plug features gold-plated contacts for superior performance and supports both stranded and solid conductors.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: MP588-C
-
Country of Origin: CRI
Technical Specifications
-
Application: Unshielded Applications
-
Cable Size: 24 AWG
-
Cable Type: Copper
-
Category Type: Cat 5e
-
Color: Clear
-
Connector Type: T568A/T568B/UTP
-
Manufacturer Part Number: MP588-C
-
Material: Polycarbonate
-
Standards/Approvals: ANSI/TIA 968-A|ARRA Compliant|Buy American Act Compliant|IEC 60603-7|IEEE 802.3af/at|RoHS Compliant
-
Type: 1-Port 8-Position 8-Wire High Performance Unshielded
-
Cable Entry: T568A/T568B
-
Environmental Conditions: Indoor
-
Model: Plug
-
Standard: Meet all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant
-
Sub Brand: Pan-Plug?®
-
UNSPSC: 43223301
