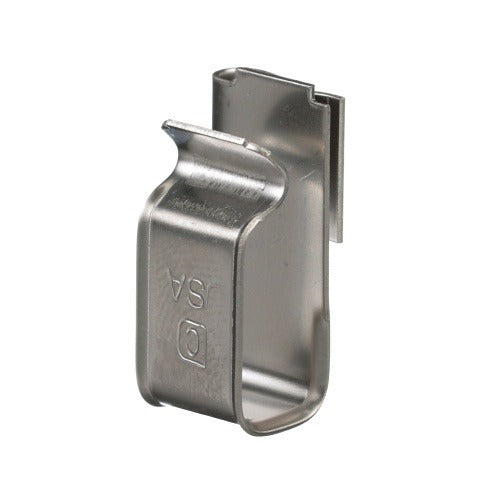

Panduit MEC100-90-2PV-C Metal Edge Clip Pv Wire

Product Description

The PANDUIT MEC100-90-2PV-C is a metal edge clip designed for photovoltaic wire management applications. It secures and routes PV wiring along panel frames, racking systems, and structural edges, keeping conductors organized and protected from abrasion and movement. This clip accommodates wire bundles ranging from 1 to 2 PV wires, providing a compact and reliable retention point without requiring additional conduit or cable ties in typical rooftop solar installations. Licensed electricians and solar installers working on residential and commercial PV systems are the primary users of this hardware accessory.

This clip is suited for PV system installations where wire routing along metal frame edges requires a secure, low-profile attachment method. It is commonly used on solar panel mounting rails and racking structures to maintain clean wire runs and comply with NEC requirements for PV conductor support and protection. Its metal construction makes it appropriate for outdoor exposure typical of rooftop and ground-mount solar arrays.

Key Features

• Metal construction for durability in outdoor PV installation environments
• Designed to retain 1 to 2 PV wires along panel frames or racking edges
• Edge-mount design eliminates the need for additional drilling or hardware in compatible rail profiles
• Low-profile clip form factor supports organized, code-compliant wire routing
• Sold individually, allowing precise quantity ordering per project needs

Compatibility

Designed as an OEM-style hardware accessory for photovoltaic wire management, suitable for use with standard solar panel racking and mounting rail systems requiring edge-clip wire retention.

Installation Notes

Installation is typically performed by licensed electricians or certified solar installers in accordance with NEC Article 690 governing PV systems. De-energize the PV array and follow lockout/tagout procedures before handling conductors or installing wire management hardware. Verify that the clip is fully seated on the rail or frame edge before routing wires to prevent conductor movement or abrasion over time. Do not overload the clip beyond its rated wire capacity of 2 PV conductors.
