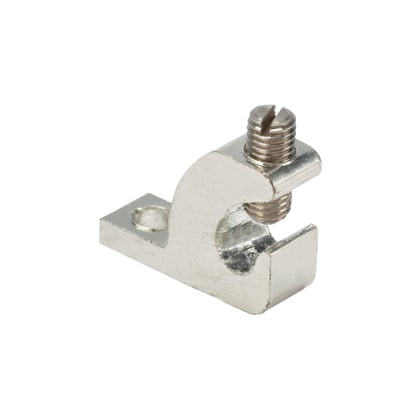

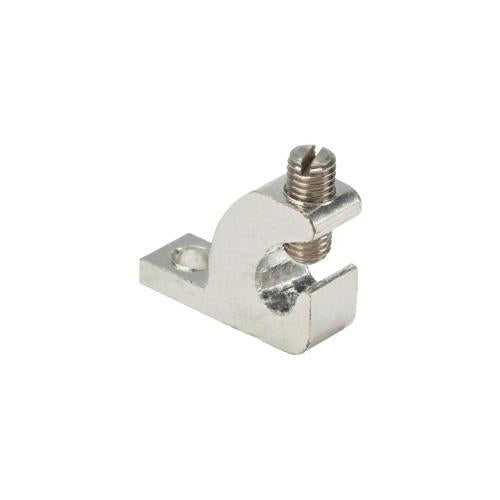

Panduit LIAC4-22-C Lay-In Lug 1-Hole 14 to 4 AWG

Product Description

Panduit, LIAC4-22-C, is a lay-in lug suitable for 14 to 4 AWG solid or stranded conductors. The lug has a one-hole design and features aluminum construction with a tin coating. It measures one point zero six inches in length, zero point thirty-nine inches in width, and zero point seventy-eight inches in height.

• Compatible with 14 to 4 AWG conductors
• Stud size of zero point twenty-two inches
• UL listed and RoHS compliant

Product Highlights

This lay-in lug enables quick installation of a continuous grounding conductor. Its wide wire range capability reduces the need for multiple inventory items.

Product Information

Standard Information

• Brand: Panduit
• MPN: LIAC4-22-C

Technical Specifications

• Material: Aluminum
• Finish: TiN Coated
• Conductor Size: 14 to 4 AWG
• Stud Size: 0.22 inches
• Dimensions: 1.06 inches L x 0.39 inches W x 0.78 inches H
• Voltage Rating: 600 Volts
• Temperature Rating: 194 degrees F (90 degrees C)
• Standards: UL Listed, CSA Certified, RoHS Compliant
