Panduit LCMA50-10-L Pan Cu Metric Lug 50mm M10 Stud

Product Description

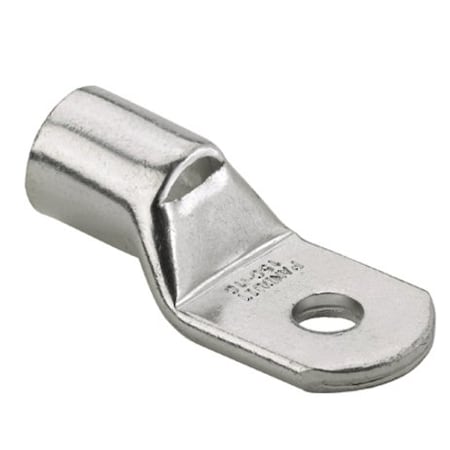

The PANDUIT LCMA50-10-L Pan-Lug™ Compression Connector is a 1-hole metric lug designed for rigid/stranded copper conductors of 50 sq-mm. It features a 0.43 inch stud and a round/straight tongue. The lug is tin-plated to inhibit corrosion and marked with product information for easy selection and installation.

• Features an inspection window to visually assure full conductor insertion
• Tin-plated to inhibit corrosion
• Product information marked on connector for selection and installation

Product Highlights

This copper compression metric lug has color-coded barrels and is suitable for power and grounding applications up to 35 kV with a temperature rating of 90 deg C.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: LCMA50-10-L
• Country of Origin: India

Technical Specifications

• Application: For use to provide permanent terminations for a variety of power and grounding applications
• Barrel Size: 9.8 mm ID x 20.3 mm L
• Conductor Size: 50 sq-mm
• Conductor Type: Rigid/Stranded Copper
• Die Code: P37
• Manufacturer Part Number: LCMA50-10-L
• Material: Tin Plated Copper
• Mounting Hole Size: 11 mm
• Overall Length: 46.5 mm
• Series: LCMA
• Specifications: 11.5 mm Wrench Clearance, 21.8 mm L Wire Strip
• Standards/Approvals: ABS Certified|ARRA Compliant|Buy American Act Compliant|CE Marked|CSA C22.2 File No. 65/03|IEC/EN 61238-1:2003 Class B with Class 2r Wire|RoHS Compliant|UL 486A/486B File No. E52164|UL Listed
• Stud Size: 0.43 in
• Temperature Rating: 90 deg C
• Tongue Size: 18 mm W x 2.5 mm THK
• Tongue Type: Round/Straight
• Type: 1-Hole Metric
• Voltage Rating: 35 kV
• Terminal Type: Flat Sided, Tubular (Battery Lugs)
• Stud/Tab Size: M10 Stud
• Thickness: 0.098" (2.49mm)
• Width - Outer Edges: 0.709" (18.00mm)
• Length - Overall: 1.831" (46.50mm)
• Mounting Type: Free Hanging (In-Line)
• Termination: Crimp
• Wire Gauge: 50mm²
• Insulation: Non-Insulated
• Contact Material: Copper
• Contact Finish: Tin
