Product Description

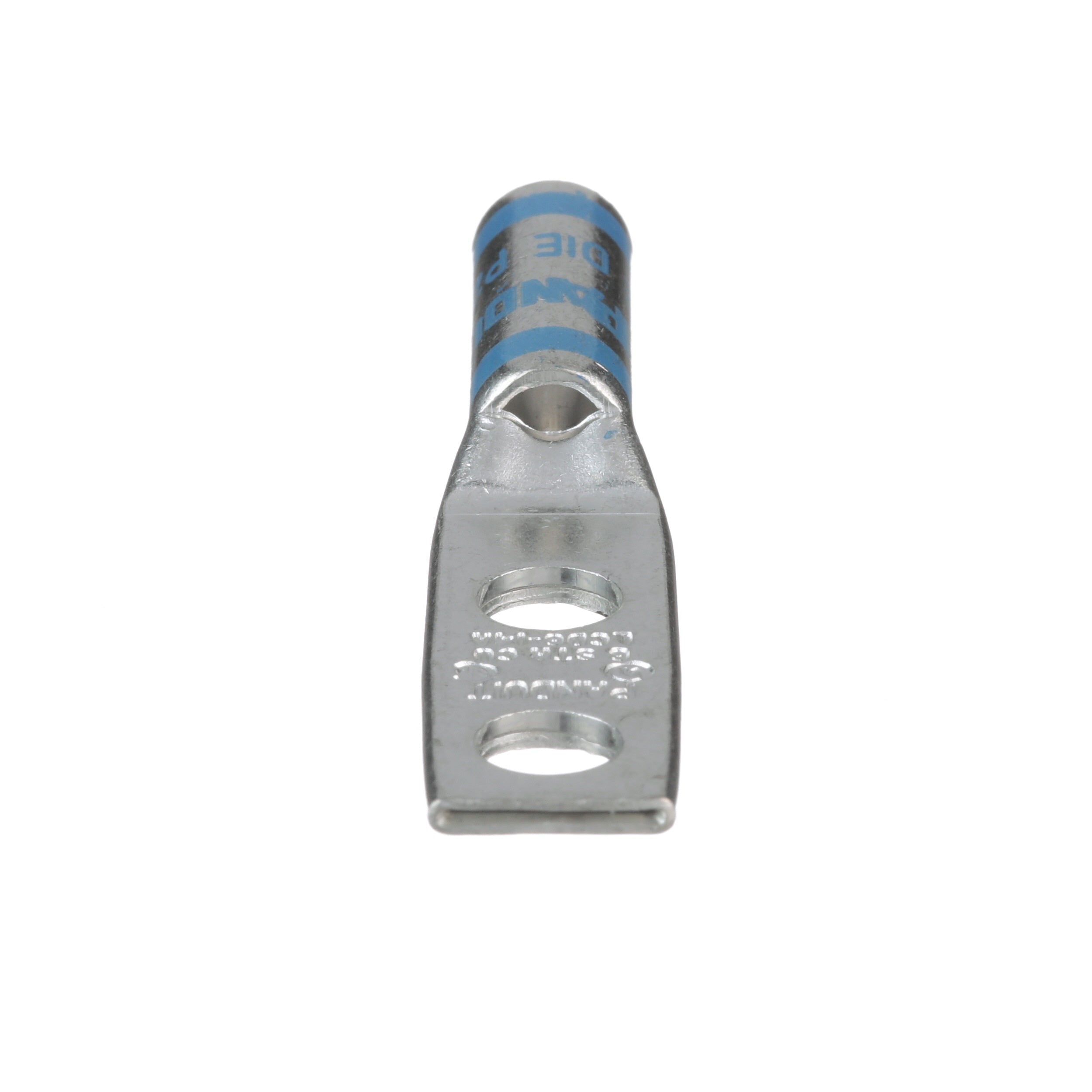

The Panduit LCD6-14A-L Pan-Lug™ Compression Connector Lug is a 2-hole lug designed for stranded copper conductors, accommodating 6 AWG wires. It features a die code of P24 and is suitable for 35 kV applications with a 1/4 inch stud. The tin-plated material helps to inhibit corrosion.
- Color-coded barrel marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
- For use with stranded copper conductor
Product Highlights
This lug ensures secure connections and corrosion resistance in electrical applications.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: LCD6-14A-L
-
Country of Origin: MX - Mexico
Technical Specifications
-
Barrel Size: 0.22 in ID x 0.31 in OD x 0.81 in L
-
Conductor Size: 6 AWG
-
Conductor Type: Stranded Copper
-
Die Code: P24
-
Manufacturer Part Number: LCD6-14A-L
-
Material: Tin Plated Copper
-
Mounting Hole Size: 7/8 in
-
Overall Length: 2.24 in
-
Series: LCD
-
Specifications: 0.63 in Stud Hole Spacing, 7/8 in L Wire Strip
-
Standards/Approvals: ABS Approved|ARRA Compliant|Buy American Act Compliant|CSA C22.2 File No. 65-13|NEBS Level 3|RoHS Compliant|UL File No. 486A|UL File No. 486B|UL File No. E52164
-
Stud Size: 1/4 in
-
Temperature Rating: 90 deg C
-
Tongue Size: 0.48 in W x 0.08 in THK
-
Tongue Type: Standard/Straight
-
Type: 2-Hole
-
Voltage Rating: 35 kV
-
Finish: Tin-Plated
-
Stud Hole Spacing: 0.63 in
-
Lug Wire Size: 6 AWG
-
Length: 2.24 in
-
Terminal Type: Lug, Grounding
-
Contact Finish: Electro-Tin
-
Contact Material: Copper
-
Terminal Style: Two Stud Holes
-
Diameter - Barrel ID: 0.220" (5.59mm)
-
Tab Thickness: 0.080" (2.03mm)
-
Diameter - Barrel OD: 0.310" (7.87mm)
-
Diameter - Ring ID: 0.270" (6.86mm)
-
Width - Outer Edges: 0.480" (12.19mm)
