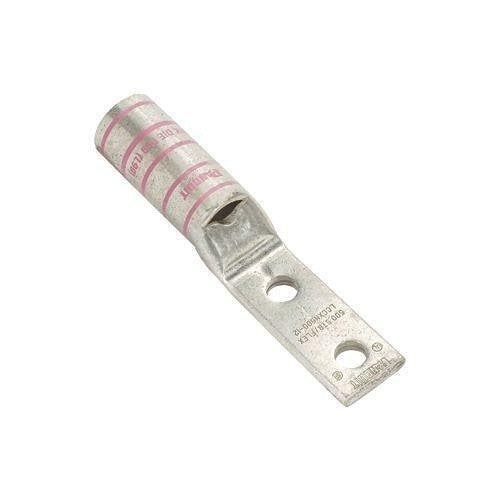

Panduit LCCXN500-12-6 Copper Compression Lug 2 Hole

Product Description

The PANDUIT LCCXN500-12-6 is a two-hole copper compression lug designed for making secure, low-resistance terminations in electrical power distribution systems. Copper compression lugs are crimped onto conductor ends using a hydraulic or ratchet compression tool, creating a gas-tight connection that resists vibration and corrosion over time. This lug is sized for large-gauge conductor applications and is installed by licensed electricians in commercial, industrial, and utility settings where reliable grounding and bonding or power terminations are required.

The two-hole mounting configuration distributes mechanical load across two fastener points, reducing stress on the terminal pad and improving long-term connection stability. This style of compression lug is commonly used in switchgear, panelboards, transformers, and motor control centers where dual-bolt terminations are specified by equipment manufacturers or the NEC. It is sold individually and suits applications where a single replacement lug is needed.

Key Features

• Two-hole barrel design provides dual-bolt termination for improved mechanical stability
• Copper construction ensures high conductivity and corrosion resistance at the termination point
• Compression-style installation creates a gas-tight crimp for long-term connection integrity
• Suitable for use in switchgear, panelboards, transformers, and motor control centers
• Sold as an individual unit for single-lug replacement or repair applications

Compatibility

Designed as an OEM-style replacement copper compression lug for use in commercial and industrial electrical power termination applications requiring a two-hole mounting pad configuration.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before installing or replacing any compression lug. Use a calibrated hydraulic or ratchet compression tool with the correct die set specified for the conductor size and lug to achieve a proper crimp. Inspect the crimped connection for deformation or incomplete crimp before restoring power.
