Product Description

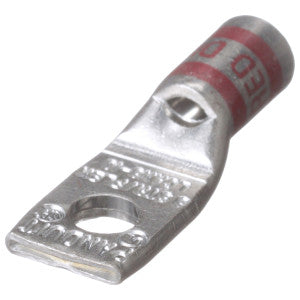

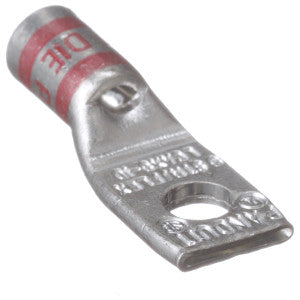

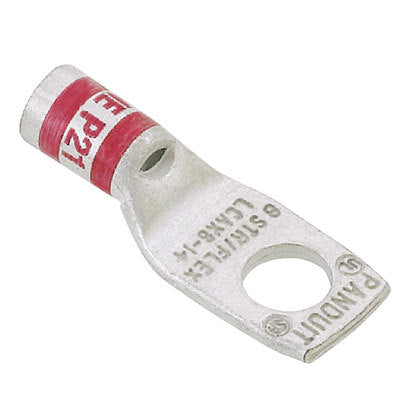

The PANDUIT LCAX8-10-L is a Pan-Lug™ compression connector lug with one hole. Constructed from tin-plated copper, this lug is designed for use with extra-flexible, flexible, and stranded copper conductors. It is suitable for power and grounding applications using 8 AWG conductors.
- Color-coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Product Highlights
The PANDUIT LCAX8-10-L ensures reliable terminations in power and grounding systems, featuring easy installation and corrosion resistance.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: LCAX8-10-L
-
Country of Origin: MX - Mexico
Technical Specifications
-
Manufacturer Part Number: LCAX8-10-L
-
Series: LCAX
-
Conductor Size: 8 AWG
-
Stud Size: 0.19 in
-
Material: Tin Plated Copper
-
Voltage Rating: 35 kV
-
Temperature Rating: 90 deg C
-
Mounting Type: Free Hanging (In-Line)
-
Termination: Crimp, Barrel
-
Wire Gauge: 8 AWG
-
Insulation: Non-Insulated
-
Contact Finish: Electro-Tin
-
Contact Material: Copper
-
Terminal Style: Single Stud Hole
-
Diameter - Barrel ID: 0.180" (4.57mm)
-
Tab Thickness: 0.080" (2.03mm)
-
Diameter - Barrel OD: 0.270" (6.86mm)
-
Length - Overall: 1.110" (28.19mm)
-
Diameter - Ring ID: 0.200" (5.08mm)
-
Width - Outer Edges: 0.410" (10.41mm)
-
Mounting: 1-Hole
-
Volts AC: 600
-
Stud Hole Spacing: #10
-
Lug Wire Size: 8 AWG
-
Finish: Tin-Plated
-
Application: For providing permanent terminations for a variety of power and grounding applications
-
Barrel Size: 0.18 in ID x 0.27 in OD x 0.42 in L
-
Conductor Type: Extra-Flexible/Flexible/Stranded Copper
-
Die Code: P21
-
Overall Length: 1.11 in
-
Tongue Size: 0.41 in W x 0.08 in THK
-
Tongue Type: Straight
-
Type: 1-Hole
-
Brand: Pan-Lug
-
Color Family: Red
