Product Description

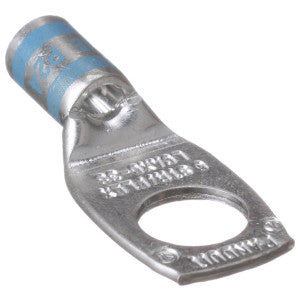

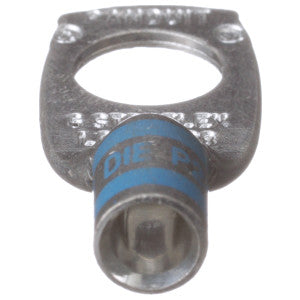

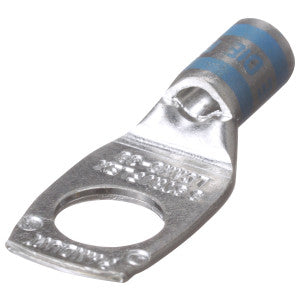

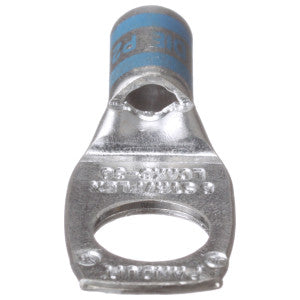

The PANDUIT LCAX6-38-L is a one-hole flex lug designed for securing NO.6 AWG wires with a 3/8 stud hole. Constructed from tin-plated copper, this lug features a standard barrel length with an inspection window. It is suitable for flexible, extra-flexible, and code-stranded copper conductors. Compliant with RoHS standards.
- One-hole, flex lug
- For #6 AWG wire
- 3/8 stud hole
Product Highlights
Tin-plated copper lug with inspection window for secure wire connections in industrial and residential settings.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: LCAX6-38-L
-
Country of Origin: MX - Mexico
Technical Specifications
-
IGCC: 4532
-
Size: NO.6 AWG Class B; C; G; H; I; K; M and DLO
-
Type: Compression Lug
-
Angle: Straight
-
Material: Tin-Plated Copper
-
Barrel Type: Standard Barrel Length with Inspection Window
-
Manufacturer: PANDUIT
-
Number Of Holes: 1
-
Special Features: Consult cable manufacturer for voltage stress relief instructions with applicati
-
Category: Connectors, Interconnects
-
Terminals: Lugs
-
Mounting Type: Free Hanging (In-Line)
-
Termination: Crimp, Barrel
-
Series: Pan-Lug
-
Wire Gauge: 6 AWG
-
Packaging: Bulk
-
Insulation: Non-Insulated
-
Part Status: Active
-
Contact Finish: Electro-Tin
-
Contact Material: Copper
-
Terminal Type: Rectangular Tongue
-
Terminal Style: Single Stud Hole
-
Diameter - Barrel ID: 0.220" (5.59mm)
-
Tab Thickness: 0.060" (1.52mm)
-
Diameter - Barrel OD: 0.310" (7.87mm)
-
Length - Overall: 1.500" (38.10mm)
-
Diameter - Ring ID: 0.410" (10.41mm)
-
Width - Outer Edges: 0.620" (15.75mm)
-
Base Product Number: LCAX
-
ECCN: EAR99
-
Brand: Pan-Lug
-
Finish: Tin-Plated
-
Standard: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
-
Lug Wire Size: 6 AWG
-
Environmental Initiative: ROHS
-
Compliant: Yes
-
Color: Blue
-
Length: 1.5 in.
-
Overall Length: 1.5 in, 38.1 mm
-
Tongue Width: .62 in, 15.7 mm
-
Barrel Length: .48 in, 12.2 mm
-
Tongue Type: Standard Tongue Width
-
Tongue Angle: Straight
