Panduit LCAF8-14-L Copper Compression Connectors - Lugs

Product Description

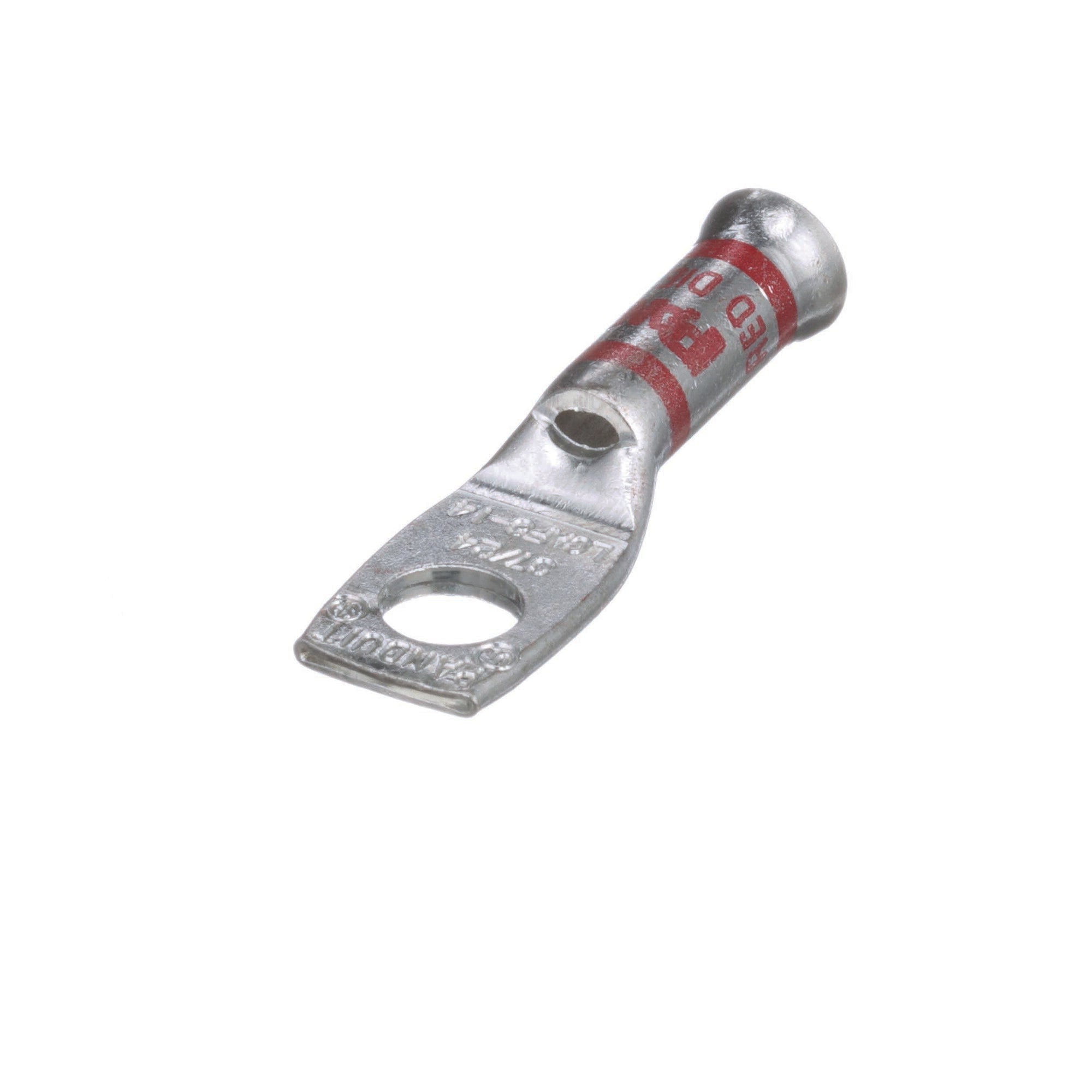

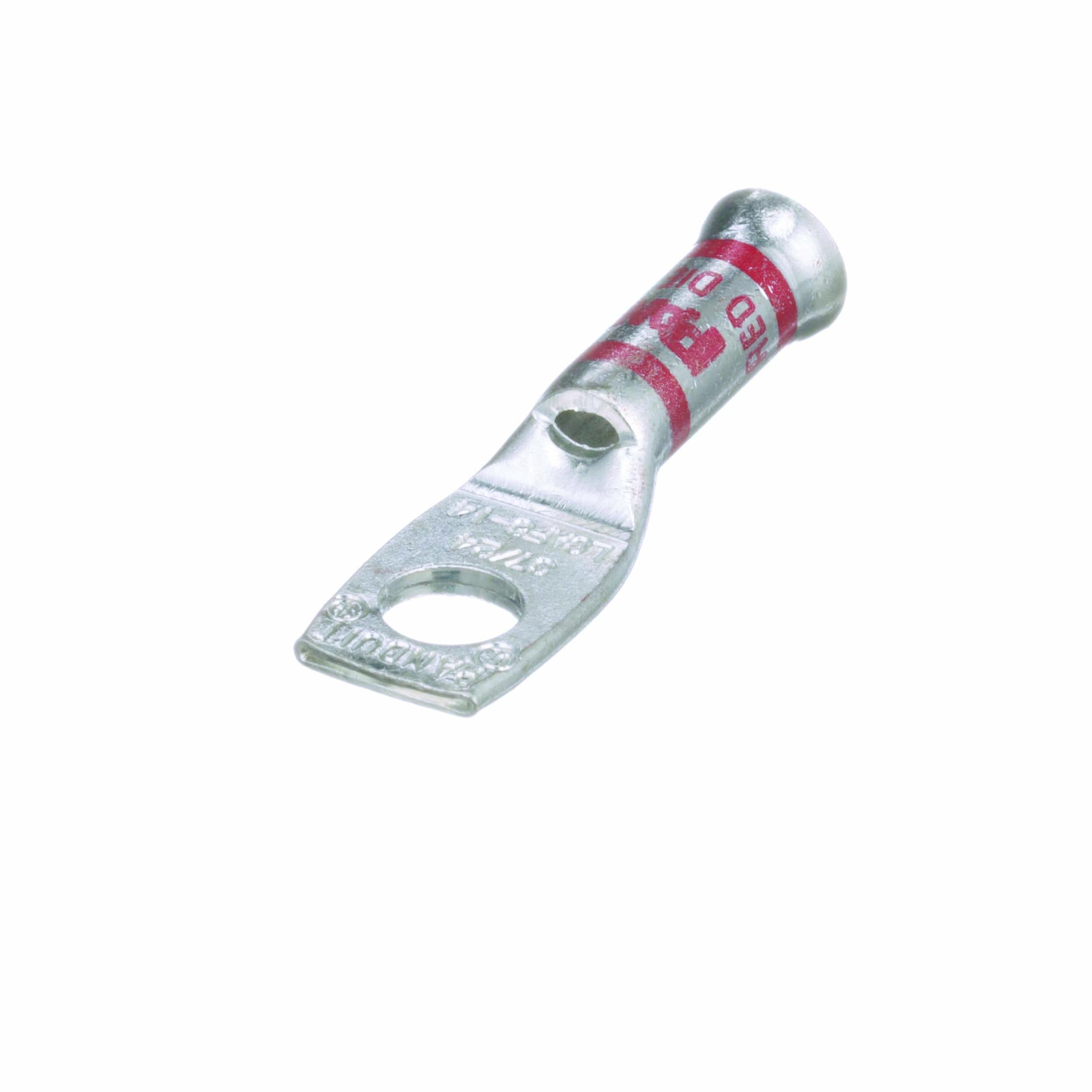

Panduit Copper Compression Connector Lug, model LCAF8-14-L, is designed for use with #8 AWG wire and a 1/4 inch stud hole. It features a one-hole flared barrel design that allows for secure and reliable electrical connections in various applications.

• One-hole flared barrel for easy connection
• Compatible with #8 AWG wire
• Suitable for 1/4 inch stud holes

Product Highlights

This connector is suitable for applications requiring effective electrical conductivity. It is made from tin-plated copper for enhanced durability and corrosion resistance.

Product Information

Standard Information

• Brand: Panduit
• Catalog Number: LCAF8-14-L
• UPC: 074983557097

Technical Specifications

• Size: #8 AWG DLO
• Material: Tin-Plated Copper
• Stud Size: 42.826 inches
• Number of Holes: 1
• Voltage Rating: 35 kV
• Temperature Rating: 90 degrees C
• Color: Red
• Country of Origin: Mexico
• Special Features: Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
