PANDUIT LCAF3012X
PANDUIT LCAF3012X

PANDUIT LCAF3/0-12-X CuLug 3/0AWG Flared 1/2StudPKG10

Brand: PANDUIT
SKU: LCAF3012X
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12 pm
$1,001.24
$1,001.24
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

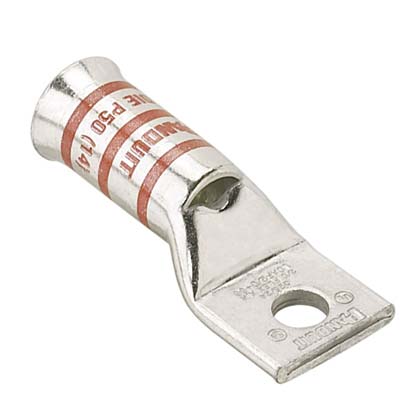

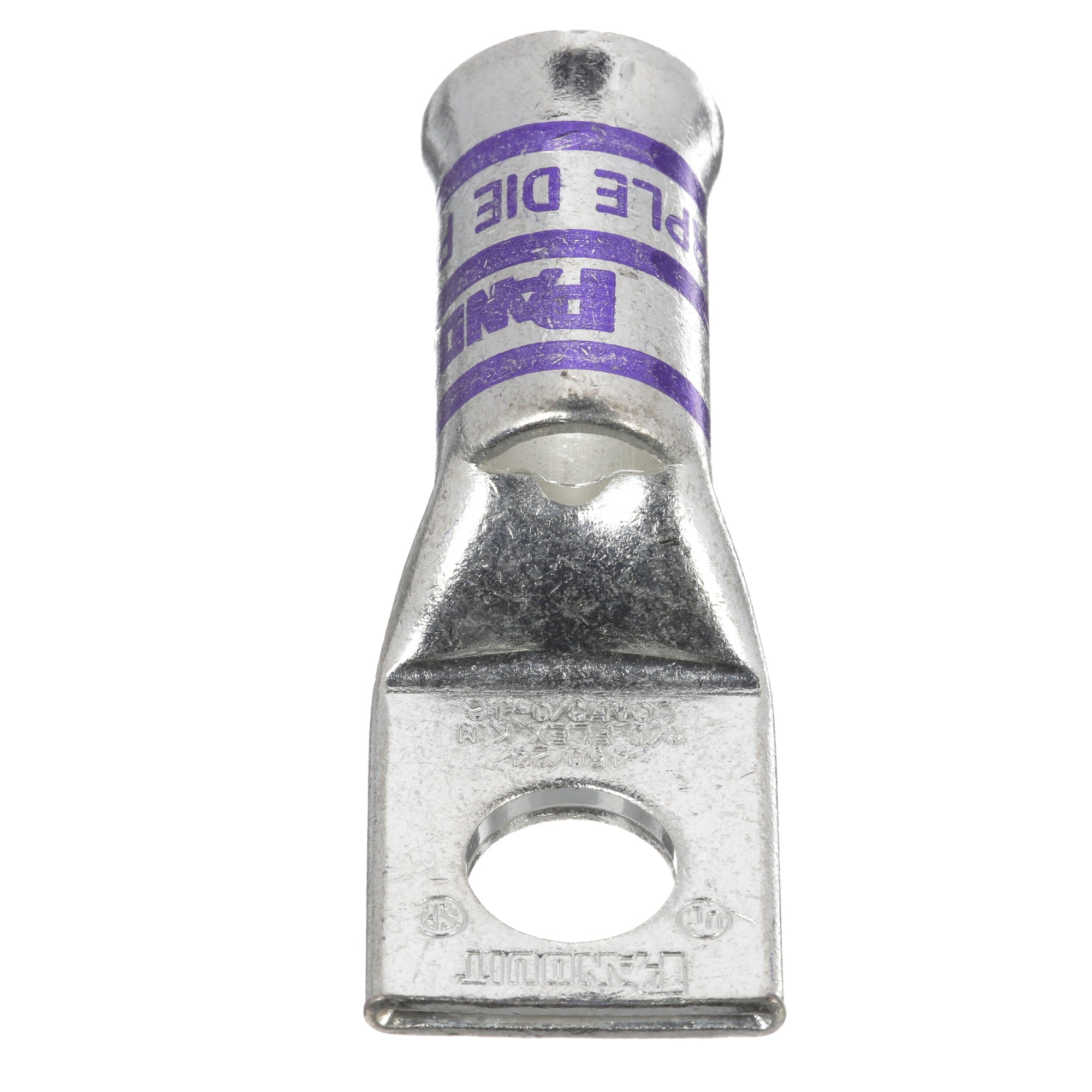

Panduit LCAF3/0-12-X is a compression connector designed for 3/0 AWG flexible copper conductors with a 1/2 inch stud. This connector is suitable for various electrical applications that require reliable connections.

  • One-hole, flared barrel design
  • Tin-plated to prevent corrosion
  • UL Listed and CSA Certified for safety

Product Highlights

Use this connector for making secure electrical connections in a variety of installations.

Product Information

Standard Information

  • Manufacturer: Panduit
  • Part Number: LCAF3/0-12-X

Technical Specifications

  • Gauge: 3/0 AWG
  • Stud Size: 1/2 inch
  • Barrel Size: 0.57 inches ID x 0.81 inches OD x 1.35 inches long
  • Temperature Rating: 90 degrees Celsius
  • Voltage Rating: 35 kV
  • Material: Tin-plated copper
  • Type: 1-Hole Compression
  • Inspection Hole: Yes
