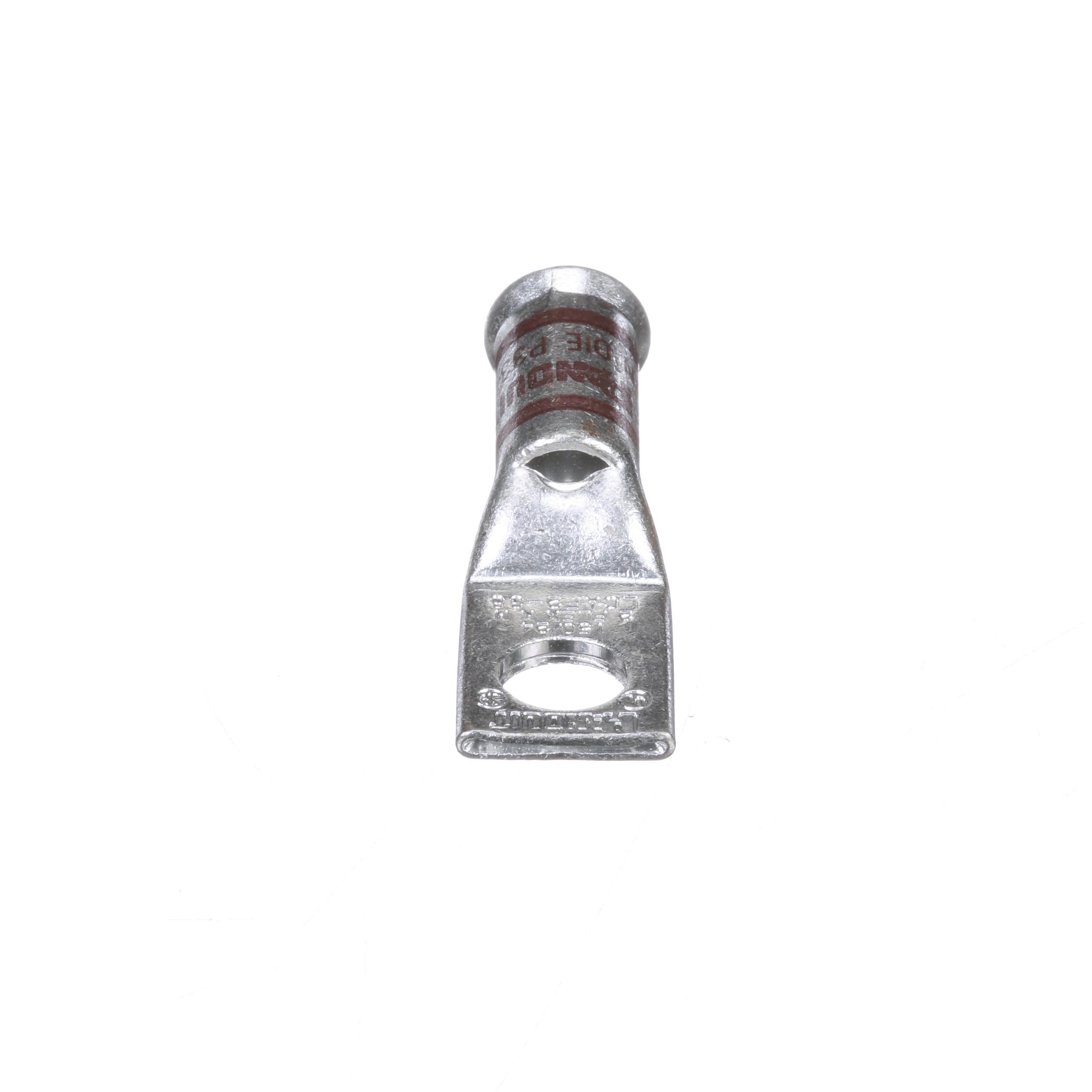

Panduit LCAF2-38-E CuLug 1H #2AWG Flared 3/8StudPKG20

Product Description

Panduit LCAF2-38-E is a compression connector lug designed for power and grounding applications. This product supports #2 AWG wire with a three-eighths inch stud hole. The flared barrel design ensures proper conductor insertion without bending strands.

• Flared entry prevents bent back strands during insertion.
• Inspection window for confirming complete conductor insertion.
• UL Listed and CSA Certified for safety and reliability.

Product Highlights

Panduit LCAF2-38-E provides a reliable connection for various conductor types including flex conductor class K, M, and Diesel Locomotive. The tin plating inhibits corrosion and enhances durability.

Product Information

Standard Information

• Brand: Panduit
• MPN: LCAF2-38-E

Technical Specifications

• Stud Size: 3/8 inch
• Conductor Gauge: 2 AWG
• Holes: 1 Hole
• Inspection Window: Yes
• Lug Material: Copper
• Type: Standard Compression
• Voltage Rating: 35 kV
• Temperature Rating: 90 deg C
• UNSPSC Code: 39121400
