Panduit LCA2-56-Q Copper Compression Lug 35kV 2 AWG Replacement MPN

Product Description

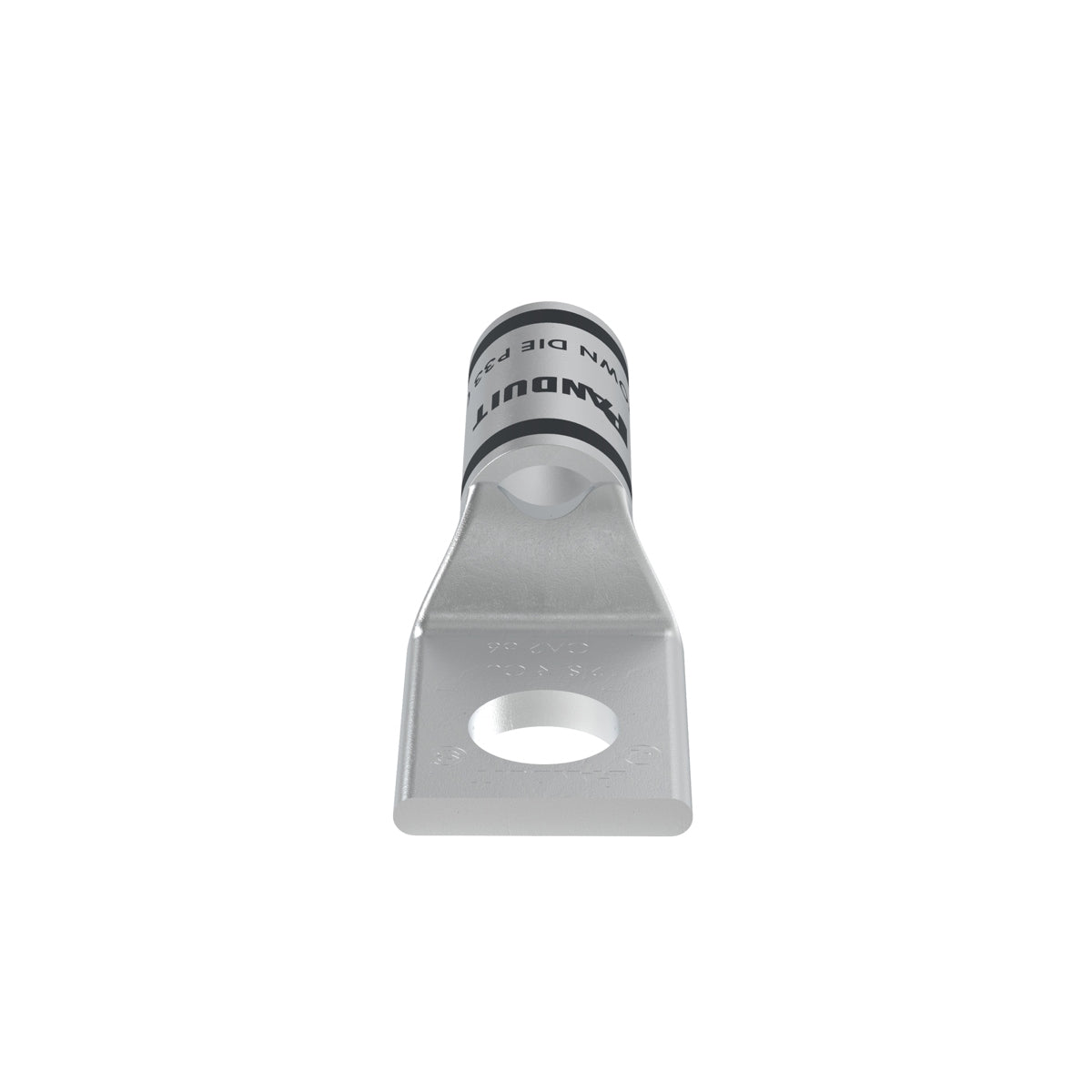

The Panduit LCA2-56-Q is a tin-plated copper compression lug designed for reliable electrical connections. It features a one-hole standard barrel and utilizes color-coded barrels that indicate proper crimp die selection. The inspection window ensures proper conductor insertion for optimal performance. The tin plating provides excellent corrosion resistance, making it suitable for various applications.

• UL Listed and CSA Certified for high voltage applications
• Temperature rated for up to ninety degrees Celsius
• Inspection window for full conductor insertion assurance

Product Highlights

The LCA2-56-Q is ideal for use in electrical systems requiring secure and reliable connections.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: LCA2-56-Q

Technical Specifications

• Type: One-hole Compression
• Barrel Size: Standard
• Gauge: 2 AWG
• Bolt Hole Diameter: 5/16 inch
• Holes: 1 Hole
• Inspection Hole: Yes
• Lug Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90 degrees Celsius
• UNSPSC Code: 39121400
