Product Description

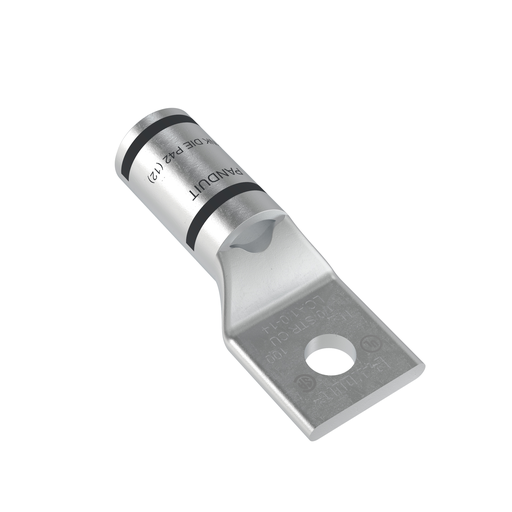

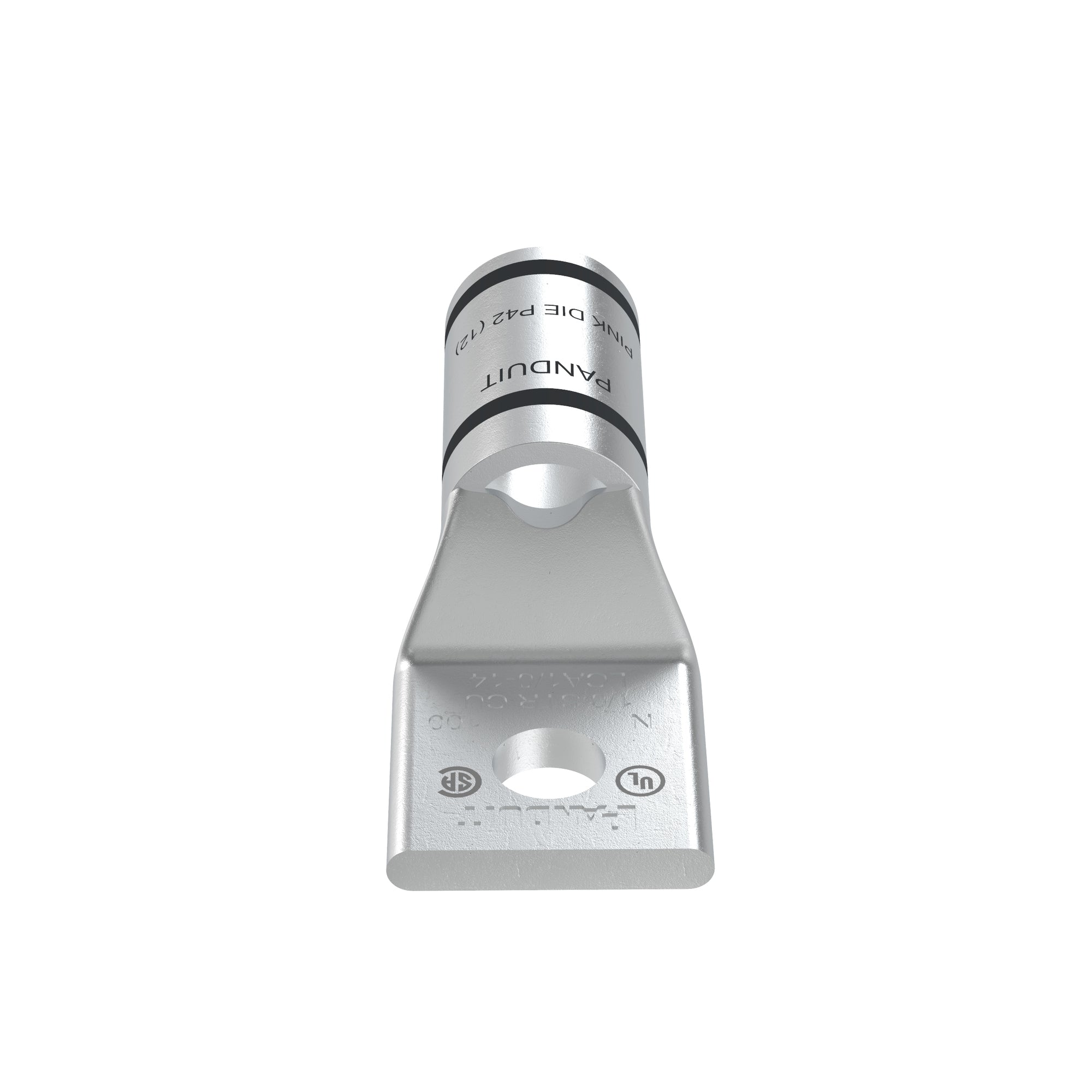

The Panduit LCA1/0-14-X is a tin-plated copper compression lug designed for reliable electrical connections. This compression lug features a standard barrel with a single hole. It includes color-coded barrels that are marked with Panduit and competitor die index numbers for easy crimp die selection. An inspection window helps ensure complete conductor insertion, enhancing safety and functionality in electrical applications.
- Constructed from durable tin-plated copper to resist corrosion.
- Rated for use up to 35 kV voltage applications.
- Temperature rated to ninety degrees Celsius for reliable performance.
Product Highlights
The LCA1/0-14-X compression lug is suitable for various power and grounding applications, providing secure and effective terminations.
Product Information
Standard Information
-
Manufacturer: Panduit
-
Part Number: LCA1/0-14-X
Technical Specifications
-
Catalog Number: LCA1/0-14-X
-
Material: Tin-Plated Copper
-
Conductor Size: 1/0 AWG
-
Angle: Straight
-
Stud Size: 1/4 inch
-
Number of Holes: 1
-
Voltage Rating: 35 kV
-
Temperature Rating: 90 degrees Celsius
