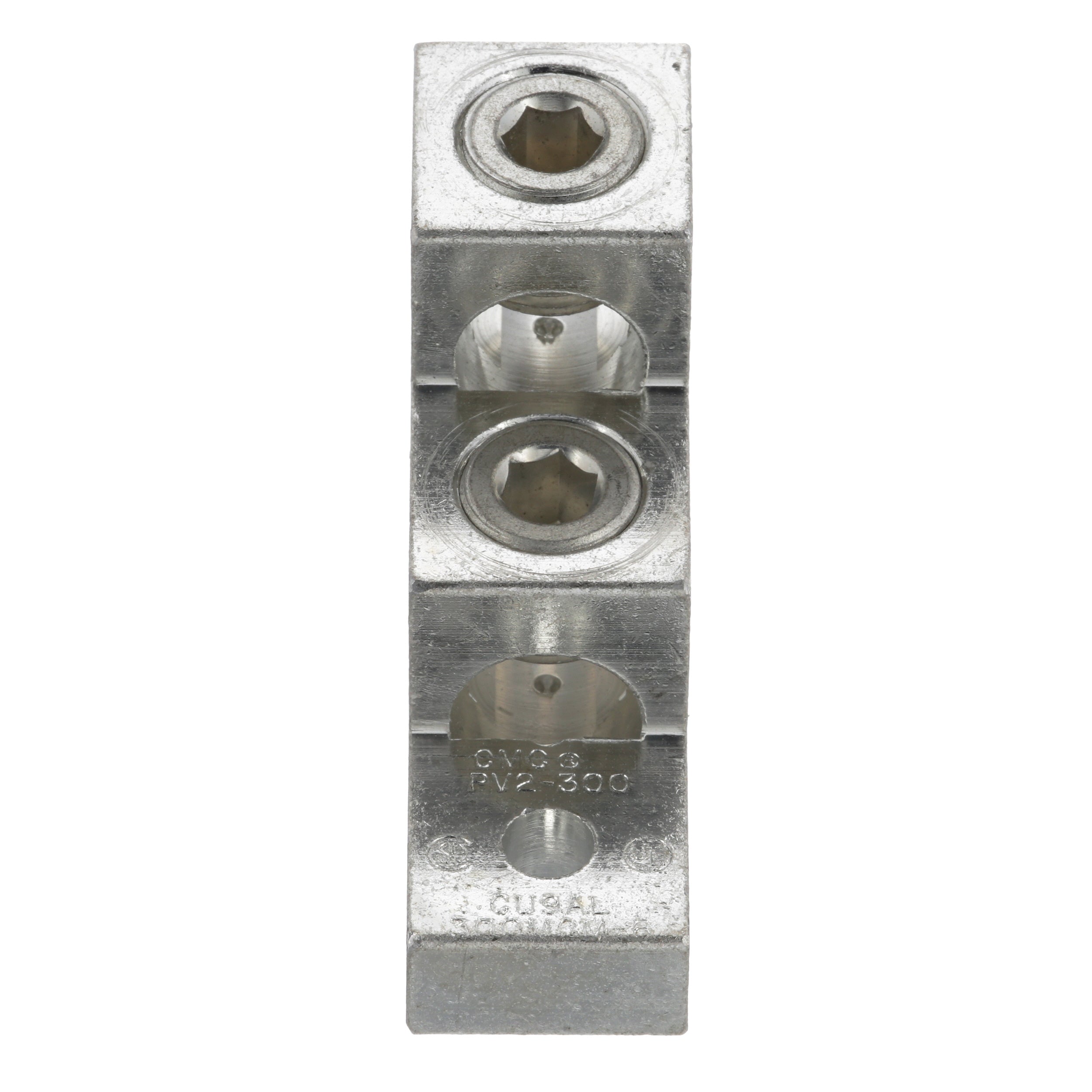

Panduit LAM2SA300-56-3 Pan Al Mechanical Conn

Brand: PANDUIT
SKU: LAM2SA300-56-3
Availability: In Stock

Ships same day if ordered by 12 pm
$34.03
$34.03
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Panduit LAM2SA300-56-3 Pan-Lug™ Mechanical Connector Lug is made from high strength, extruded aluminum alloy. Accommodates 6 AWG to 300 kcmil conductors and features a 5/16 in stud. Designed for stranded aluminum or copper code conductors. The dual barrel provides termination of two conductors.

  • Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
  • Wide wire range-taking capability minimizes inventory requirements
  • Inspection window to visually assure full conductor insertion

Product Highlights

The Panduit LAM2SA300-56-3 lug offers premium electrical and mechanical performance with its aluminum alloy construction and wide wire range capability.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: LAM2SA300-56-3
  • Country of Origin: United States of America
Technical Specifications
Application
For stranded aluminum or copper code conductors
Conductor Size
6 AWG to 300 kcmil
Conductor Type
Aluminum/Copper/Stranded
Finish
Tin Plated
Manufacturer Part Number
LAM2SA300-56-3
Material
Aluminum
Number of Bolt Holes
1
Series
LAM2SA
Specifications
5/16 in Hex, 1.02 in L Wire Strip, 2 Conductors
Standards/Approvals
ARRA Compliant|Buy American Act Compliant|CSA Certified|RoHS Compliant|UL Listed
Stud Size
5/16 in
Temperature Rating
90 deg C
Tongue Type
Straight
Type
2-Barrel Vertical
Voltage Rating
600 VAC
RoHS Flag
Yes
GTIN
00074983423200
UNSPSC
39121466
Energy Star Flag
No
Made In America
Yes
UPC
07498342320
Country Of Origin
United States of America
Manufacturer Name
Panduit
Hex Size
0.3125
