Product Description

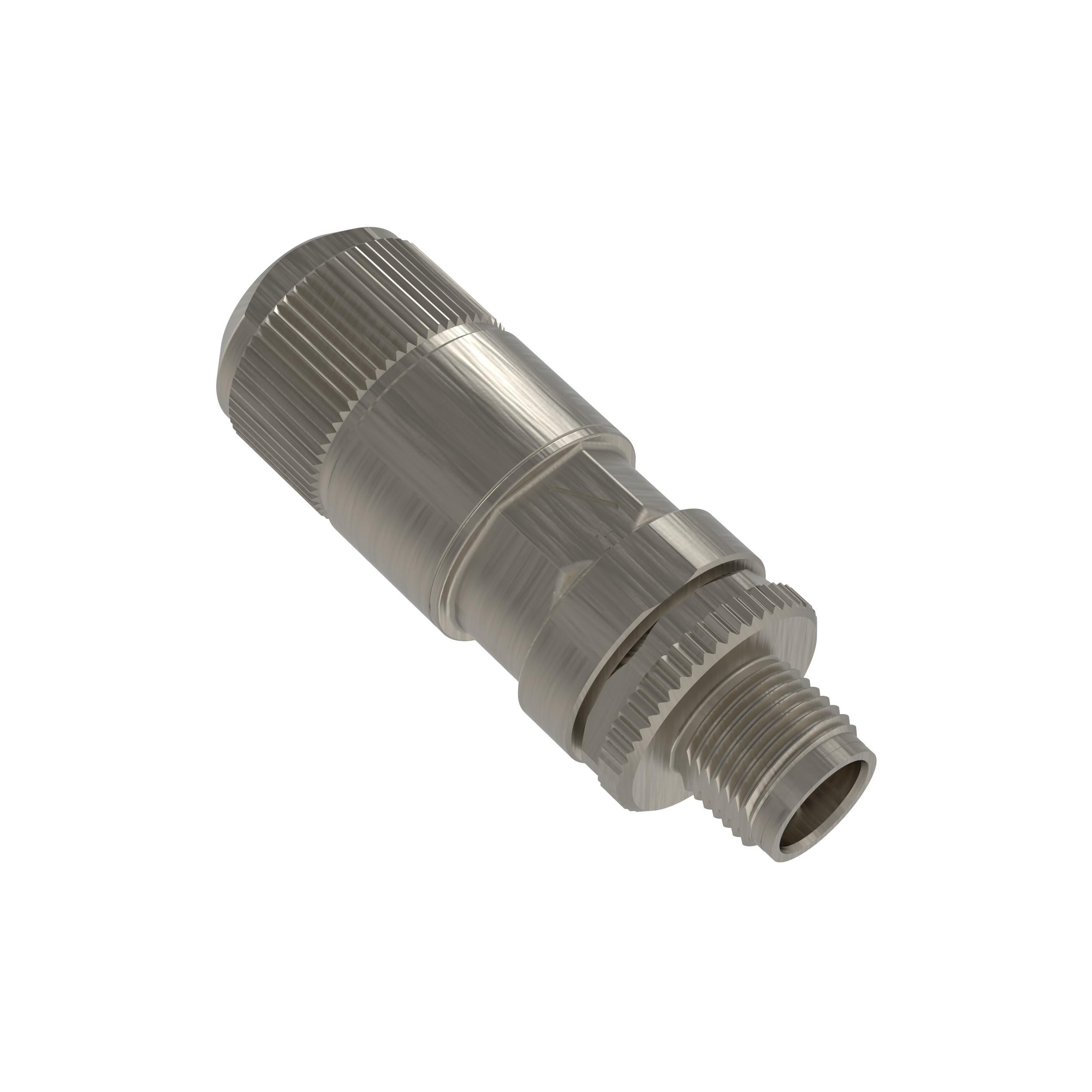

Panduit ISPS6A88MFA is an 8-position field terminable plug designed for industrial and manufacturing environments. This M12 X-Code connector meets standards like ANSI/TIA-568-C.2 and offers both shielded and unshielded cable options. It is engineered with a die cast zinc housing, providing durability and resistance in high-noise environments.
- Field attachable without special tools.
- Compatible with 27 to 22 AWG copper, solid, and stranded cables.
- IP65/IP67 ingress protection rating for demanding applications.
Product Highlights
This plug facilitates fast installation and supports up to ten re-terminations with the same gauge cable, ensuring flexibility and efficiency on the job.
Product Information
Standard Information
-
Brand: Panduit
-
Manufacturer: Panduit
Technical Specifications
-
Material: Die Cast Zinc
-
Connector Type: M12 X-Code/STP/UTP
-
Cable Size: 27 to 22 AWG
-
Dimensions: 0.59 in W x 2.32 in D x 0.78 in H
-
Category Type: Cat 6A
-
Color: Metallic
-
Application: For manufacturing facilities and harsh industries applications
-
Standards/Approvals: ANSI/TIA 568-C.2 | ARRA Compliant | Buy American Act Compliant | IEC 60529/60532-4/61076-2-109 | IEEE 802.3af/802.3at | RoHS Compliant | UL 1863
