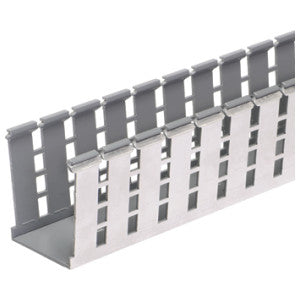

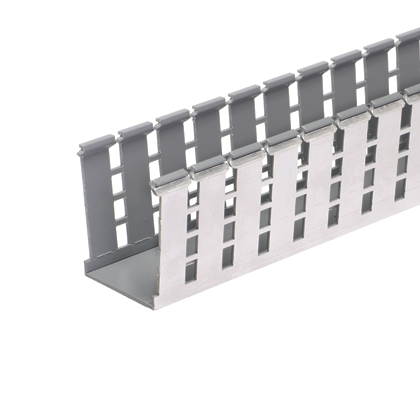

Panduit G2X3LG6EMI Panelmax Shielded Wiring Duct Base 6 ft

Product Description

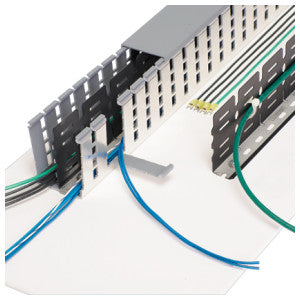

The Panduit G2X3LG6EMI PanelMax shielded wiring duct routes, separates, and shields sensitive wiring from noise emission. This allows pathways to be placed in closer proximity, saving valuable space within industrial control panels. The shielding provides up to 20 dB reduction in noise (EMI/RFI) or 90% noise voltage reduction (NVR).

• Metric halogen-free wide finger and slot design provides greater rigidity
• Upper and lower score lines allows easy finger and sidewall section removals
• Base sidewall is even with cover for superior aesthetics and greater wiring capacity

Product Highlights

The wiring duct is part of the broad range of reliable product systems offered by Panduit industrial automation solution. These product systems aid in reducing design and assembly time and create valuable panel space savings.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: G2X3LG6EMI
• Country of Origin: US - United States

Technical Specifications

• Color: Light Gray
• Depth: 3 in
• Length: 6 ft
• Manufacturer Part Number: G2X3LG6EMI
• Material: Aluminum/PVC
• Mounting Type: Hole
• Slot Size: 0.31 in
• Slot Type: Wide Slot
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CE 2006/95/EC|CSA C22.2 File No. 18.5-13|EN 50085-1/50085-2-3|IEC 60332-1|NFPA 79-2015 Section 13.3.1/13.5.2|RoHS Compliant|UL Recognized|UL 1565
• Type: Type G Shielded
• Width: 2.25 in
• ECCN: EAR99
• Country of Origin: US - United States
• UPC: 07498339257
• UNSPSC: 39131712
• Brand: PanelMax
• Application: Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications. Shielded Wiring Duct provides EMI/RFI noise reduction.
• Flammability Rating: UL94 V-0
• Color Family: Gray
• Height: 3.12 in
