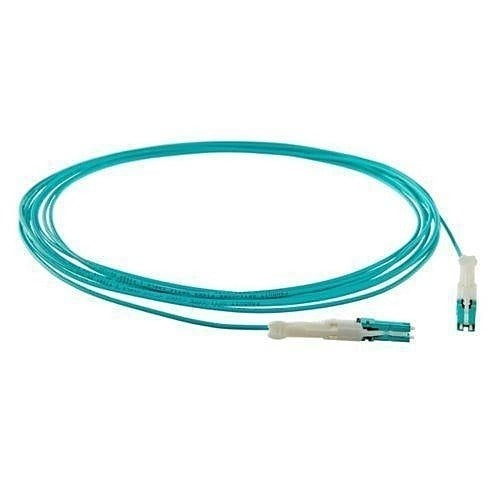

Panduit FZ2RPZNZNONF013 OM4 Fiber Patch Cord 2F Ofnp

Product Description

The PANDUIT FZ2RPZNZNONF013 is an OM4 multimode fiber optic patch cord designed for high-density structured cabling installations. Built with a 2-fiber, 2mm plenum-rated (OFNP) cable jacket, this cord meets the fire-safety requirements for air-handling spaces without the need for conduit. The physical contact (PC) polish on each connector minimizes back reflection and insertion loss, supporting reliable data transmission in backbone and horizontal fiber runs. Licensed electricians and low-voltage technicians install this cord in data centers, enterprise networks, and commercial communications infrastructure.

This patch cord is suited for plenum-rated environments where NEC Article 770 requires OFNP-rated cabling. Typical applications include patch panel to switch connections, fiber cross-connects, and structured cabling backbone links in commercial and enterprise buildings. The OM4 multimode fiber designation supports high-bandwidth applications including 10 Gigabit, 40 Gigabit, and 100 Gigabit Ethernet over appropriate distances. It is sold as an individual unit and is appropriate for installation in both new construction and retrofit projects where plenum fire-rating compliance is required.

Key Features

• OM4 multimode fiber supports 10GbE, 40GbE, and 100GbE applications
• OFNP plenum-rated jacket meets NEC Article 770 requirements for air-handling spaces
• 2-fiber, 2mm cable construction for flexible routing in high-density environments
• Physical contact (PC) polish reduces back reflection and insertion loss at each connector
• Sold as a single unit for precise quantity management on structured cabling projects

Compatibility

Designed as an OEM-style patch cord for use with OM4 multimode fiber optic panels, switches, and transceivers in structured cabling systems requiring OFNP plenum-rated interconnects.

Installation Notes

Installation should be performed by a licensed low-voltage technician or structured cabling professional familiar with TIA-568 and NEC Article 770 requirements. De-energize connected equipment and follow proper ESD precautions before handling fiber connectors. Avoid exceeding the minimum bend radius of the cable during routing to prevent signal degradation. Inspect and clean connector end-faces before mating to ensure optimal optical performance.
