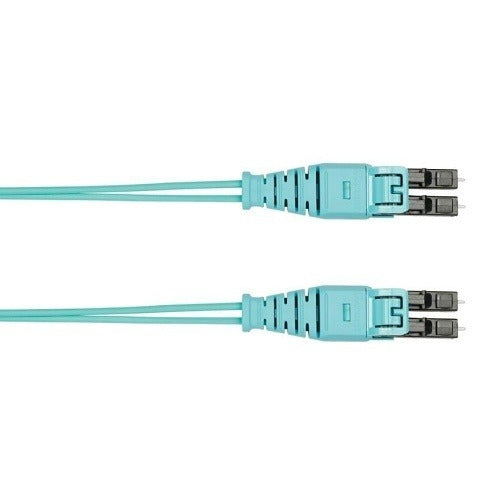

Panduit FZ2ELQ1Q1NNM019 OM4 Duplex Fiber Patch Cable

Product Description

The PANDUIT FZ2ELQ1Q1NNM019 is an OM4 multimode duplex fiber optic patch cable designed for high-density structured cabling environments. It features a 1.6mm cable diameter, LC to LC connectors with a PushPull tab boot for tool-free insertion and extraction, and a Low Smoke Zero Halogen (LSZH) jacket rated for plenum and restricted-air spaces where halogen-free materials are required. The polished physical contact (PC) ferrule finish minimizes back reflection and insertion loss. Network technicians and data center cabling professionals install this cable to interconnect switches, servers, patch panels, and fiber distribution units on OM4-rated multimode runs.

This patch cable is suited for multimode fiber backbone and horizontal runs in commercial and enterprise environments, including data centers, telecommunications rooms, and server closets. The LSZH jacket meets fire safety requirements for installations where smoke toxicity is a concern, such as European-standard facilities and confined cable pathways. The PushPull boot allows dense patch panel work without the need for special extraction tools, making it practical in high-port-count installations where adjacent ports limit finger access.

Key Features

• OM4 multimode fiber classification supports high-bandwidth applications at standard data center reach distances
• Duplex 2-fiber construction for full-duplex transceiver connections in a single cable assembly
• 1.6mm cable diameter for flexible routing in dense, congested cable trays and enclosures
• LSZH jacket meets low smoke and zero halogen fire safety requirements for restricted spaces
• PushPull tab boot enables tool-free connector insertion and extraction in high-density patch fields
• Physical Contact (PC) polished ferrule reduces insertion loss and back reflection at the fiber interface

Compatibility

Designed as an OEM-style replacement and standard patch cable for LC-to-LC duplex OM4 multimode fiber applications in structured cabling systems.

Installation Notes

Installation is performed by licensed low-voltage technicians or structured cabling professionals. Inspect ferrule end-faces with a fiber inspection scope before mating connectors, and clean as needed per ANSI/TIA-568 handling guidelines. Do not exceed the minimum bend radius of the cable during routing through trays or conduit. Use the PushPull tab rather than the cable body to seat and remove connectors in dense patch panels.
