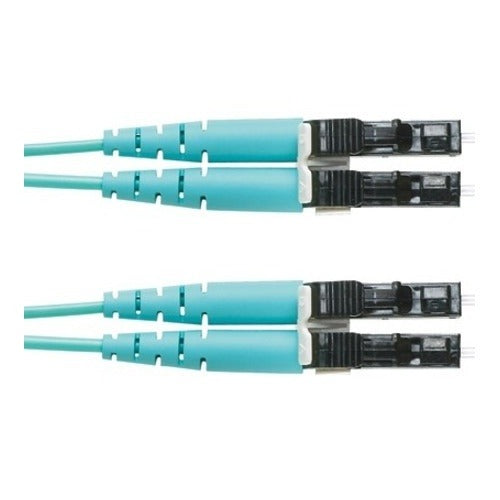

Panduit FZ2ELLNLNSNM024 OM4 Duplex Lc Fiber Patch Cable

Product Description

The PANDUIT FZ2ELLNLNSNM024 is a 2-fiber duplex OM4 multimode fiber optic patch cable terminated with LC connectors on both ends. Built with a 1.6mm low-smoke zero-halogen (LSZH) jacket, this cable is suited for data center, telecommunications, and enterprise network environments where fire safety compliance and high-bandwidth performance are required. The OM4 multimode fiber supports 10G, 40G, and 100G Ethernet applications over typical structured cabling runs. Network technicians and low-voltage installers use this cable for equipment-side connections between switches, transceivers, patch panels, and fiber distribution units.

This patch cable is designed for indoor structured cabling installations where LSZH jacket material is specified by code or customer requirement. Common applications include data center rack-to-rack connections, horizontal and backbone fiber runs between panels, and direct connections to SFP or QSFP transceivers. The 24-meter length accommodates longer intra-facility runs within data centers or telecom rooms. The duplex LC configuration matches the most widely deployed fiber transceiver interface in modern networking hardware.

Key Features

• OM4 multimode fiber supports 10G, 40G, and 100G Ethernet applications
• Duplex LC connectors on both ends for standard transceiver compatibility
• 1.6mm LSZH jacket meets low-smoke, zero-halogen fire safety requirements
• 24-meter cable length for longer intra-facility patch runs
• 2-fiber configuration in a compact duplex cable assembly

Compatibility

Designed as an OEM-style replacement or new-installation fiber patch cable for OM4 multimode duplex LC fiber optic systems in data center and enterprise network environments.

Installation Notes

Installation is performed by low-voltage technicians or network cabling professionals. Before connecting or disconnecting fiber patch cables, power down or disable the associated optical transceivers to avoid eye hazard from active laser sources. Clean LC ferrules with an approved fiber optic cleaning tool before mating. Follow TIA-568 and applicable local codes for fiber routing, bend radius management, and labeling requirements.
