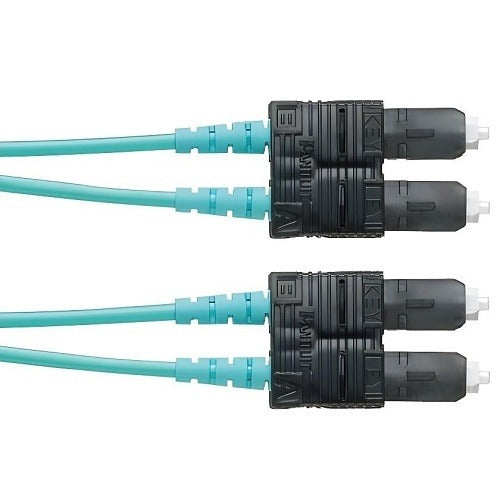

Panduit FZ23LSNSNSNM032 OM4 Duplex Sc Fiber Patch Cable

Product Description

The PANDUIT FZ23LSNSNSNM032 is an OM4 multimode duplex fiber optic patch cable designed for high-density data center, enterprise LAN, and structured cabling installations. It features a 3mm LSZH (Low Smoke Zero Halogen) jacket, SC duplex connectors on both ends, and a 2-fiber construction. LSZH jacket material limits toxic smoke and halogen gas emission in the event of fire, making it the correct choice for plenum-adjacent or low-ventilation environments where local codes require it. Licensed low-voltage and data cabling technicians are the typical installers of this assembly.

This patch cable suits backbone and horizontal runs in multimode OM4 fiber infrastructure, including 10G, 40G, and 100G network segments where OM4 wavelength performance is specified. The duplex SC connector format is standard in enterprise switch gear, patch panels, and optical transceivers. It is sold as a factory-terminated assembly, meaning no field polishing or epoxy work is required at installation.

Key Features

• OM4 multimode fiber supports high-bandwidth applications including 10GbE, 40GbE, and 100GbE
• Duplex SC connectors on both ends for standard enterprise and data center equipment
• 3mm LSZH jacket reduces toxic smoke and halogen emissions for code-compliant indoor use
• 2-fiber construction supports full-duplex transmit and receive on a single cable assembly
• Factory-terminated assembly eliminates field polishing and ensures consistent insertion loss

Compatibility

Designed as an OEM-style replacement or new-install assembly for OM4 multimode fiber optic infrastructure using SC duplex connector ports on patch panels, switches, or transceivers.

Installation Notes

Installation is performed by licensed low-voltage or data cabling technicians following TIA-568 structured cabling standards. Do not exceed the minimum bend radius of the cable during routing, as exceeding it can degrade optical performance. Inspect SC ferrules for contamination before mating and clean with an approved fiber optic cleaning tool if needed. Patch cables should not be forced into ports or sharply kinked during cable management.
