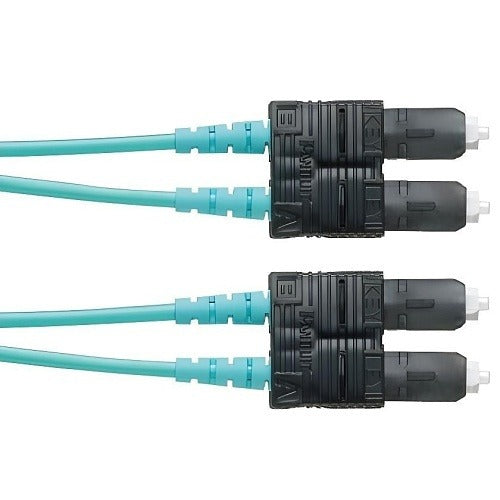

Panduit FZ23LSNSNSNM023 OM4 Duplex Sc Fiber Patch Cable

Product Description

The PANDUIT FZ23LSNSNSNM023 is an OM4 duplex fiber optic patch cable with SC connectors on both ends. It features a 3mm low-smoke zero-halogen (LSZH) jacket and a 2-fiber construction, making it suitable for high-bandwidth multimode applications in data centers, enterprise networks, and commercial communications infrastructure. The polished PC (physical contact) connector finish reduces back reflection and insertion loss. Licensed electricians and low-voltage cabling technicians are the typical installers for this type of structured cabling assembly.

This patch cable is designed for multimode OM4 fiber installations requiring LSZH-rated jacket material, which is commonly specified in plenum or enclosed spaces where low smoke emission and halogen-free materials are required by building or fire codes. The duplex SC configuration supports full-duplex data transmission and is commonly deployed in switch-to-switch, switch-to-server, and patch panel connections in commercial and enterprise environments.

Key Features

• OM4 multimode fiber supports high-bandwidth, short-reach data center applications
• Duplex 2-fiber construction enables full-duplex transmission in a single cable run
• LSZH jacket meets low-smoke, halogen-free requirements for enclosed or occupied spaces
• 3mm jacket diameter provides added durability and protection for the fiber strands
• SC duplex connectors on both ends with PC polish for reduced back reflection

Compatibility

Designed as an OEM-style patch cable for use with OM4 multimode fiber optic systems utilizing SC duplex port interfaces on switches, transceivers, and patch panels.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician or licensed electrician familiar with fiber optic structured cabling practices. Always power down active equipment before disconnecting fiber connections to avoid exposure to live optical signals. Avoid bending the cable below its minimum bend radius, and do not exceed the rated pull tension during routing. Local building and fire codes may specify LSZH-rated cabling for certain installation environments.
