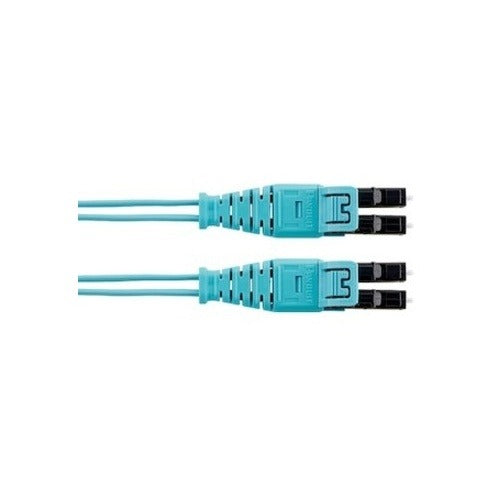

Panduit FX2ERQ1Q1SNM039 OM3 Fiber Patch Cord 2F 1.6mm

Product Description

The PANDUIT FX2ERQ1Q1SNM039 is a 2-fiber OM3 multimode fiber optic patch cord with a 1.6mm diameter cable jacket rated OFNR (Optical Fiber Nonconductive Riser). It features a push-pull connector style for tool-free insertion and removal in high-density fiber panels and enclosures. This patch cord is designed for structured cabling installations in commercial and enterprise environments where 10 Gigabit Ethernet and high-bandwidth backbone runs demand reliable OM3 performance. Licensed low-voltage installers and data communications technicians are the typical end users for this component.

This patch cord suits horizontal and backbone fiber runs in riser-rated building pathways. The OFNR jacket rating qualifies it for use in vertical shaft and between-floor cable runs per NEC requirements. The 1.6mm cordage diameter keeps bend radius manageable in congested fiber trays and high-density patch panels. It is well suited for data center, enterprise LAN, and commercial structured cabling deployments where OM3 multimode performance is specified.

Key Features

• OM3 multimode fiber supports 10GbE and high-bandwidth data transmission
• 2-fiber configuration for duplex communication links
• 1.6mm cable diameter reduces bulk in high-density installations
• OFNR-rated jacket approved for riser pathway routing per NEC Article 770
• Push-pull connector design enables fast, tool-free mating and extraction in dense panels

Compatibility

Designed as an OEM-style patch cord for use with OM3 multimode fiber infrastructure panels, enclosures, and equipment ports accepting the applicable push-pull connector interface.

Installation Notes

Installation should be performed by a qualified low-voltage or fiber optic technician familiar with structured cabling standards such as TIA-568 and NEC Article 770. De-energize or power down connected active equipment before disturbing fiber connections at switch or transceiver ports. Avoid exceeding the minimum bend radius of the 1.6mm cordage to prevent signal loss or physical damage. Inspect and clean fiber end faces before mating using appropriate fiber optic cleaning tools.
