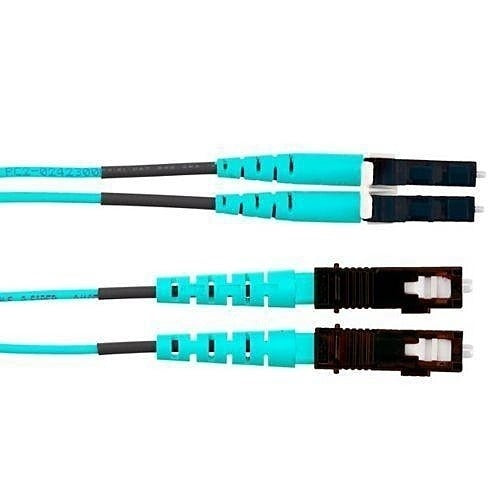

Panduit FX2ELLNSNSNM015 OM3 Duplex Lc Fiber Patch Cable

Product Description

The PANDUIT FX2ELLNSNSNM015 is a 2-fiber OM3 duplex fiber optic patch cable designed for high-speed data networking applications. Built with a 1.6mm jacket diameter and a low-smoke zero-halogen (LSZH) outer jacket, this cable is suited for environments where fire safety and toxic-emission standards are a priority. The LC duplex connectors on each end deliver a physical contact (PC) polish for reliable signal transmission with low insertion loss. Network technicians and low-voltage installers use this assembly to connect switches, servers, and patch panels in structured cabling systems.

This patch cable is intended for multimode fiber installations operating at OM3 performance levels, supporting data rates up to 10 Gigabit Ethernet and compatible laser-optimized multimode applications. The LSZH jacket makes it appropriate for use in plenum-adjacent or enclosed spaces where halogen-free materials are specified by building codes or owner requirements. Typical deployment scenarios include data centers, telecommunications rooms, and enterprise network closets where LC duplex connectivity is standard.

Key Features

• OM3 multimode fiber classification supports high-speed, short-distance data transmission
• LC duplex connectors on both ends with physical contact (PC) polish
• 1.6mm jacket diameter for flexible routing in dense patch environments
• Low-smoke zero-halogen (LSZH) jacket for fire-safety-conscious installations
• 2-fiber duplex construction for simultaneous transmit and receive operation
• 15-meter length provides reach for cross-room or inter-rack runs

Compatibility

Designed as an OEM-style replacement or new-installation assembly for OM3 multimode fiber infrastructure using LC duplex port equipment.

Installation Notes

Installation is performed by low-voltage network technicians following TIA-568 structured cabling standards. Before connecting or disconnecting fiber patch cables, power down active transceivers where possible and never look directly into a live fiber port. Keep dust caps in place on unused connectors to prevent contamination of the ferrule face. Inspect and clean LC ferrules with an appropriate fiber optic cleaning tool before seating the connector to ensure insertion loss stays within acceptable limits.
