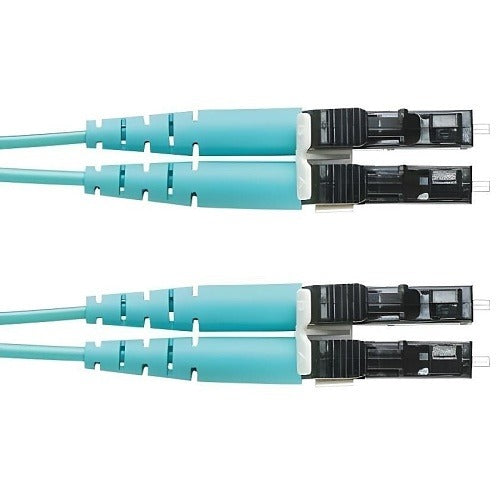

Panduit FX2ELLNLNSNM019 OM3 Duplex Lc Fiber Cable

Product Description

The PANDUIT FX2ELLNLNSNM019 is an OM3 multimode duplex fiber optic patch cable designed for structured cabling and data network installations. Built with a 1.6mm cordage diameter and Low Smoke Zero Halogen (LSZH) jacket material, this cable is suited for environments where flame spread and toxic smoke emissions are a concern, such as plenum spaces and high-density network closets. The LC duplex connector format provides a compact, latching interface common in modern switch, router, and transceiver installations. Network technicians and low-voltage cabling contractors are the primary installers of this assembly.

This patch cable is appropriate for use in OM3 multimode fiber runs within commercial and enterprise network infrastructure. It connects active equipment at patch panels, fiber distribution units, and network switches. The LSZH jacket rating makes it a fit for installations governed by building codes that restrict halogen-containing materials, including many European and international standards as well as select North American projects with strict environmental specifications. The 2-fiber duplex configuration supports full-duplex data transmission as required by most standard network protocols.

Key Features

• OM3 multimode fiber type supports high-bandwidth applications including 10GbE and 40GbE over standard distances
• Duplex LC connectors provide a compact, secure latching connection compatible with SFP and SFP+ ports
• 1.6mm cordage diameter offers flexibility in tight cable management environments
• LSZH jacket limits smoke and halogen gas release in the event of fire, meeting stringent building code requirements
• 2-fiber construction supports simultaneous transmit and receive paths in a single assembly

Compatibility

Designed as an OEM-style patch assembly for use with duplex LC-interface fiber optic equipment in OM3 multimode structured cabling systems.

Installation Notes

Installation of fiber optic patch cables is typically performed by low-voltage cabling technicians or network infrastructure specialists. Before connecting or disconnecting, power down or disable associated optical transceivers where required by site procedures to avoid exposure to laser light. Keep dust caps in place until the moment of connection to protect end faces. Follow TIA-568 or ISO 11801 structured cabling standards for bend radius and routing requirements.
