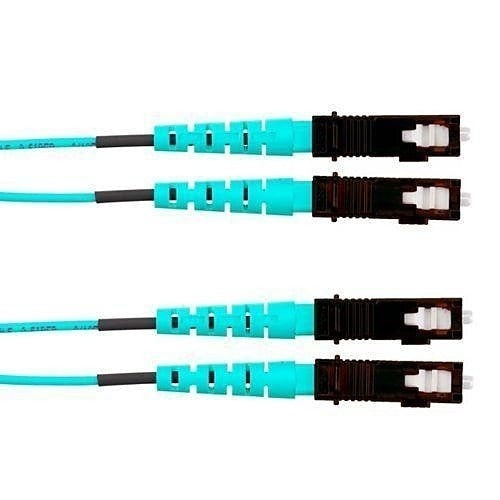

Panduit FX23RSNSNSNM007 OM3 Duplex Sc Fiber Patch Cable

Product Description

The PANDUIT FX23RSNSNSNM007 is an OM3 multimode duplex fiber optic patch cable designed for high-speed data and network infrastructure applications. Built with a 3mm jacket diameter and SC duplex connectors on both ends, this cable carries two fibers (2F) in a polished, OFNR-rated assembly. The OFNR (Optical Fiber Nonconductive Riser) rating qualifies it for riser-rated installations between floors in commercial buildings. Network technicians and low-voltage contractors install this type of cable to interconnect switches, patch panels, transceivers, and fiber distribution equipment.

This patch cable is suited for structured cabling installations in commercial and enterprise environments. OM3 multimode fiber supports 10 Gigabit Ethernet and other high-bandwidth protocols over typical intrabuilding distances. The SC duplex connector format is widely used in data centers, telecom rooms, and server closets. Low-voltage technicians and network infrastructure contractors are the primary installers of this assembly.

Key Features

• OM3 multimode fiber supports 10GbE and high-bandwidth network applications
• Duplex configuration carries two fibers in a single cable assembly
• 3mm jacket diameter provides added durability and handling flexibility
• SC duplex connectors on both ends for tool-free push-pull mating
• OFNR-rated jacket qualifies for riser pathway installations per NEC Article 770
• Pre-polished factory terminations for consistent insertion loss performance

Compatibility

Designed as an OEM-style patch cable for use with SC duplex-compatible fiber ports, patch panels, and fiber distribution equipment in OM3 multimode structured cabling systems.

Installation Notes

Installation is performed by low-voltage technicians or network infrastructure contractors. Power down active equipment or disable the associated port before connecting or disconnecting fiber patch cables to avoid damage to optical transceivers. Follow NEC Article 770 requirements when routing OFNR-rated cable in riser pathways. Do not exceed the minimum bend radius of the cable during routing or dressing in cable management systems.
