Panduit FTD8214C Covered Twin Wire Ferrule

Product Description

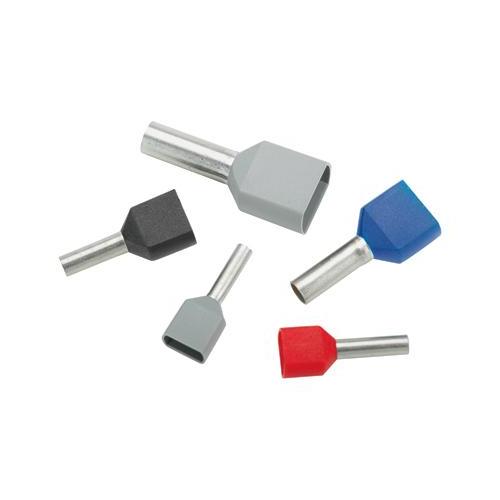

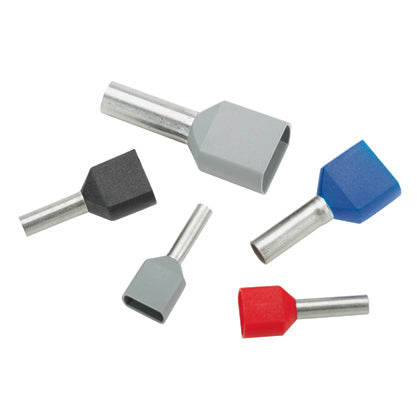

Panduit FTD8214C is a covered twin-wire ferrule designed for effective wire termination. This ferrule is built with a seamless barrel that ensures reliable containment of loose wire strands. The plastic cover enables easier insertion of wires, making it suitable for confined spaces.

• Meets DIN standards for wire containment.
• Polypropylene insulation housing adheres to color requirements.
• Funnel entry for efficient wire insertion, minimizing installation costs.

Product Highlights

This ferrule provides superior terminations for stranded conductors, especially in limited space applications.

Product Information

Standard Information

• Type: Covered Twin Wire Ferrule
• Manufacturer: Panduit

Technical Specifications

• Material: Copper
• Insulation: Polypropylene
• Color: Yellow
• Length: 0.98 inches
• Barrel Size: 0.38 inches OD x 0.98 inches L
• Conductor Size: 10 AWG
• Temperature Rating: 221 degrees Fahrenheit (105 degrees Celsius)
• Standards: DIN 46228, CSA C22.2 No. 291-14, UL 486F
