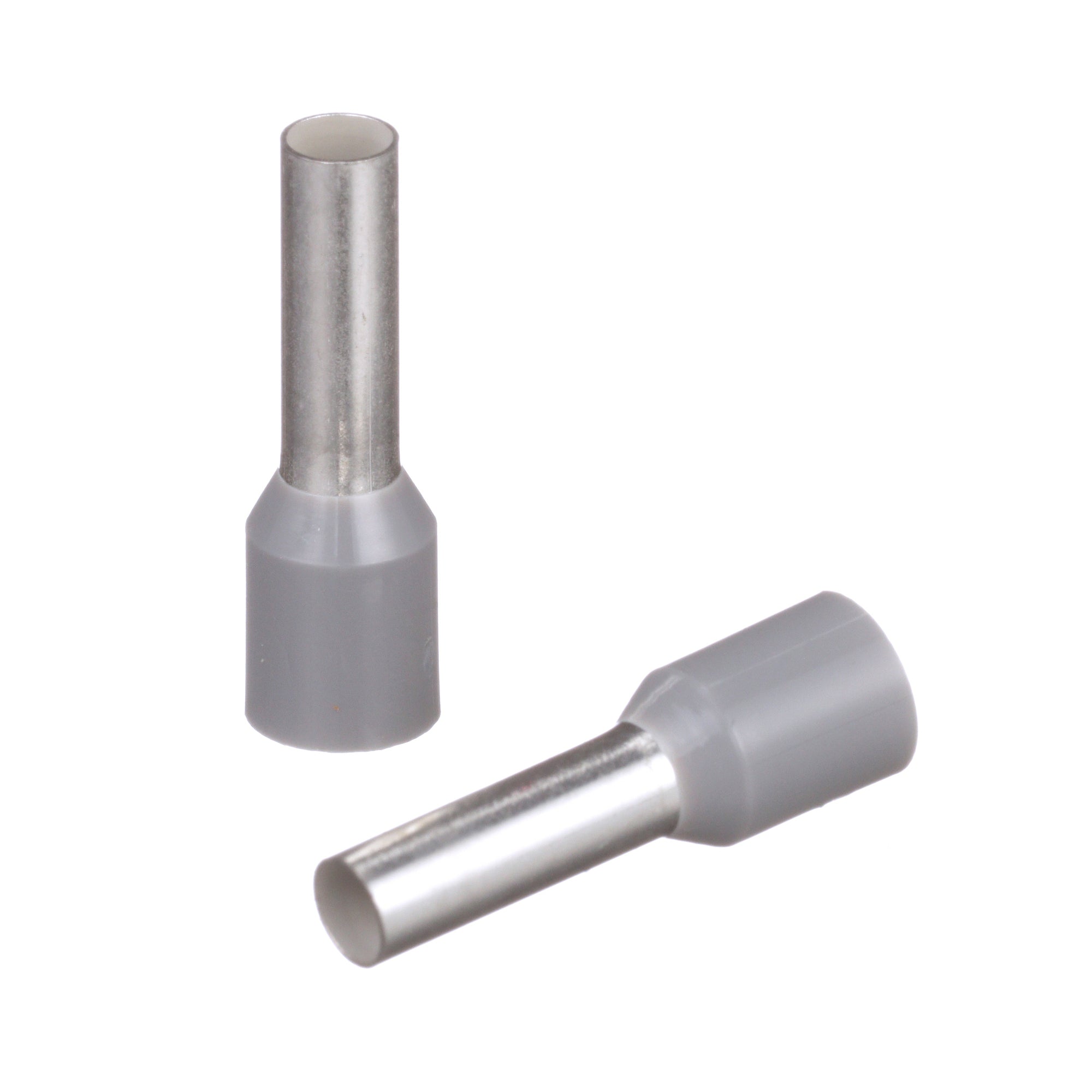

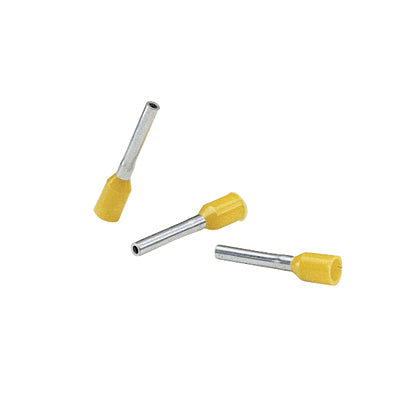

Panduit FSD81-10-D Covered Single Wire Ferrule

Product Description

Panduit FSD81-10-D is a covered single wire ferrule designed for reliable connections in electrical applications. This ferrule provides an effective solution for terminating stranded wires into terminal blocks.

• Complies with DIN standards for single wire containment.
• Constructed with polypropylene insulation for added protection.
• Features a seamless barrel design to keep wire strands contained.

Product Highlights

This ferrule is ideal for limited space panel applications. It supports 12 AWG wires and features a funnel design for easy insertion into terminal blocks.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: FSD81-10-D

Technical Specifications

• Wire Size: 12 AWG
• Length: 0.69 inches
• Barrel Size: 0.11 inches ID x 0.39 inches L
• Material: Copper
• Color: Gray
• Insulation: Polypropylene
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Standards: DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
